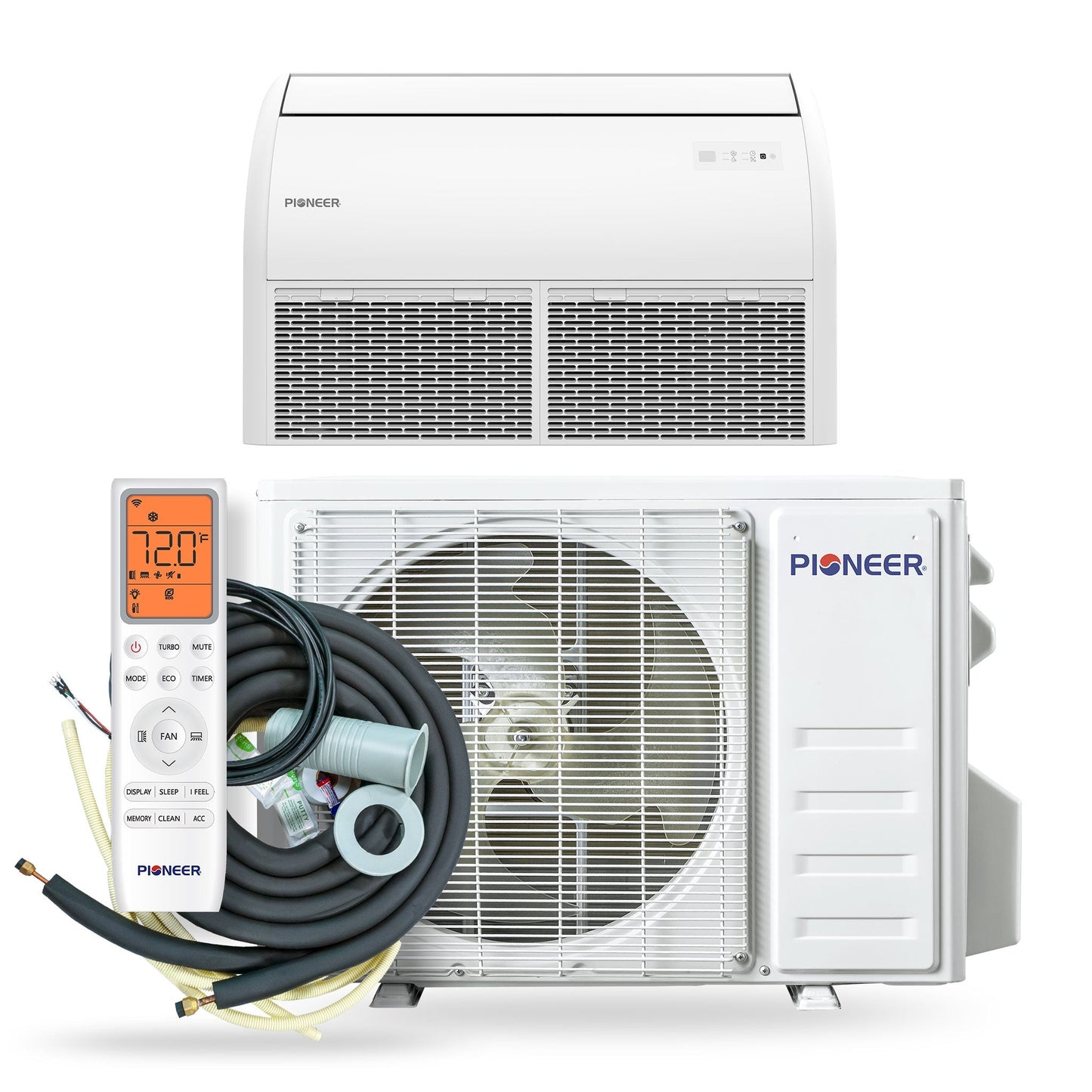

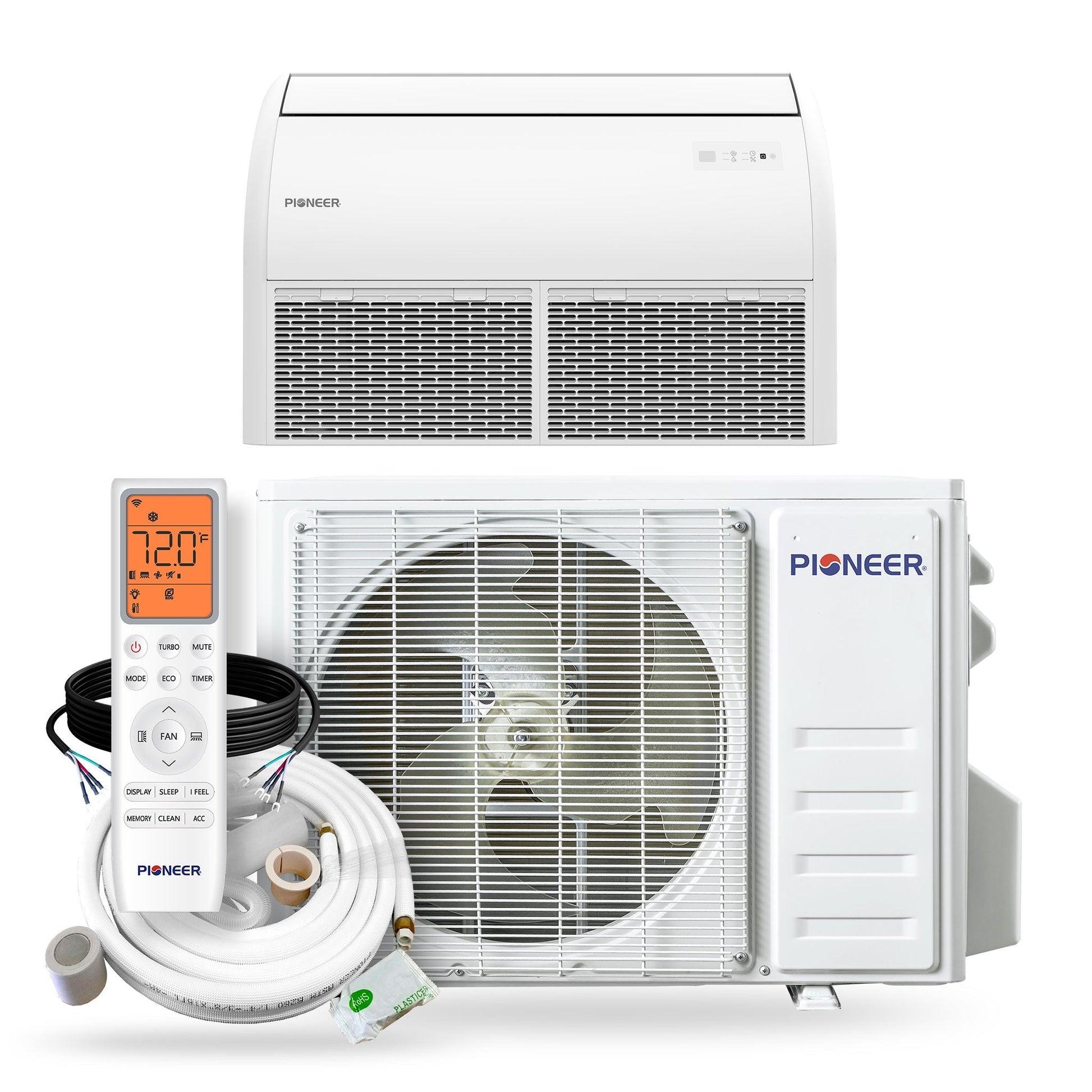

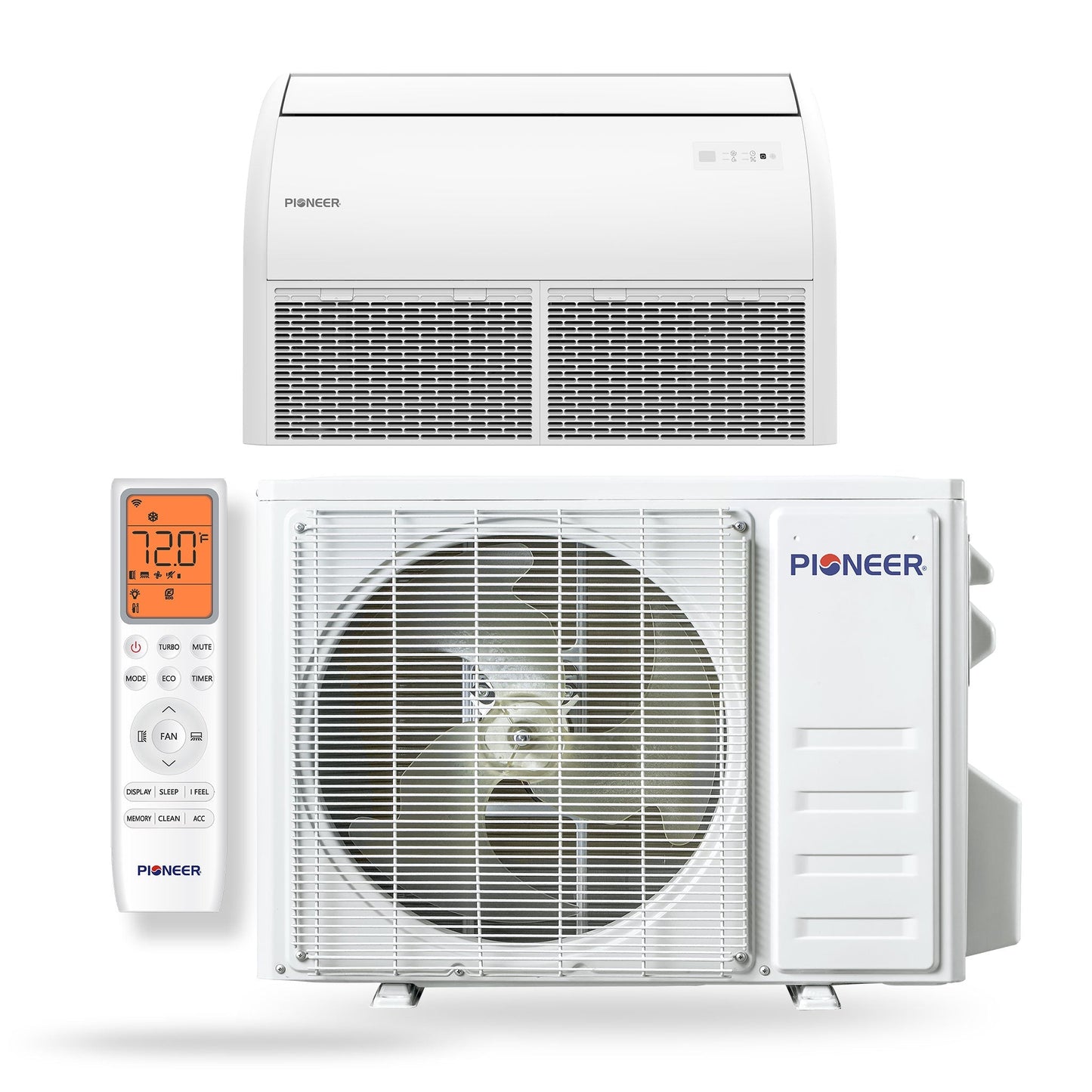

Pioneer Quantum Ultra 22,200 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - UYT024GLSI24RL-10S
- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 22,200 BTU/H with 20 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.44 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-

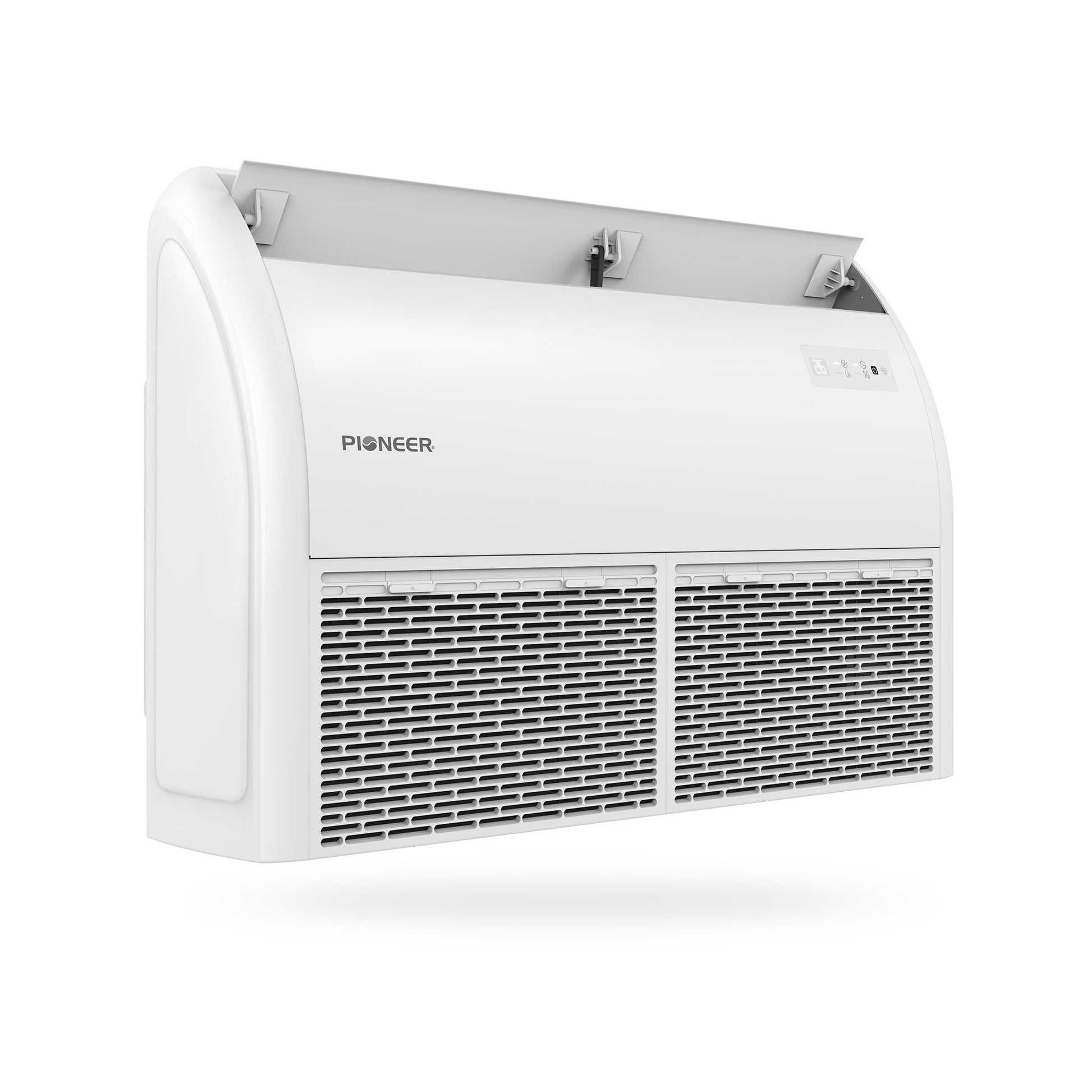

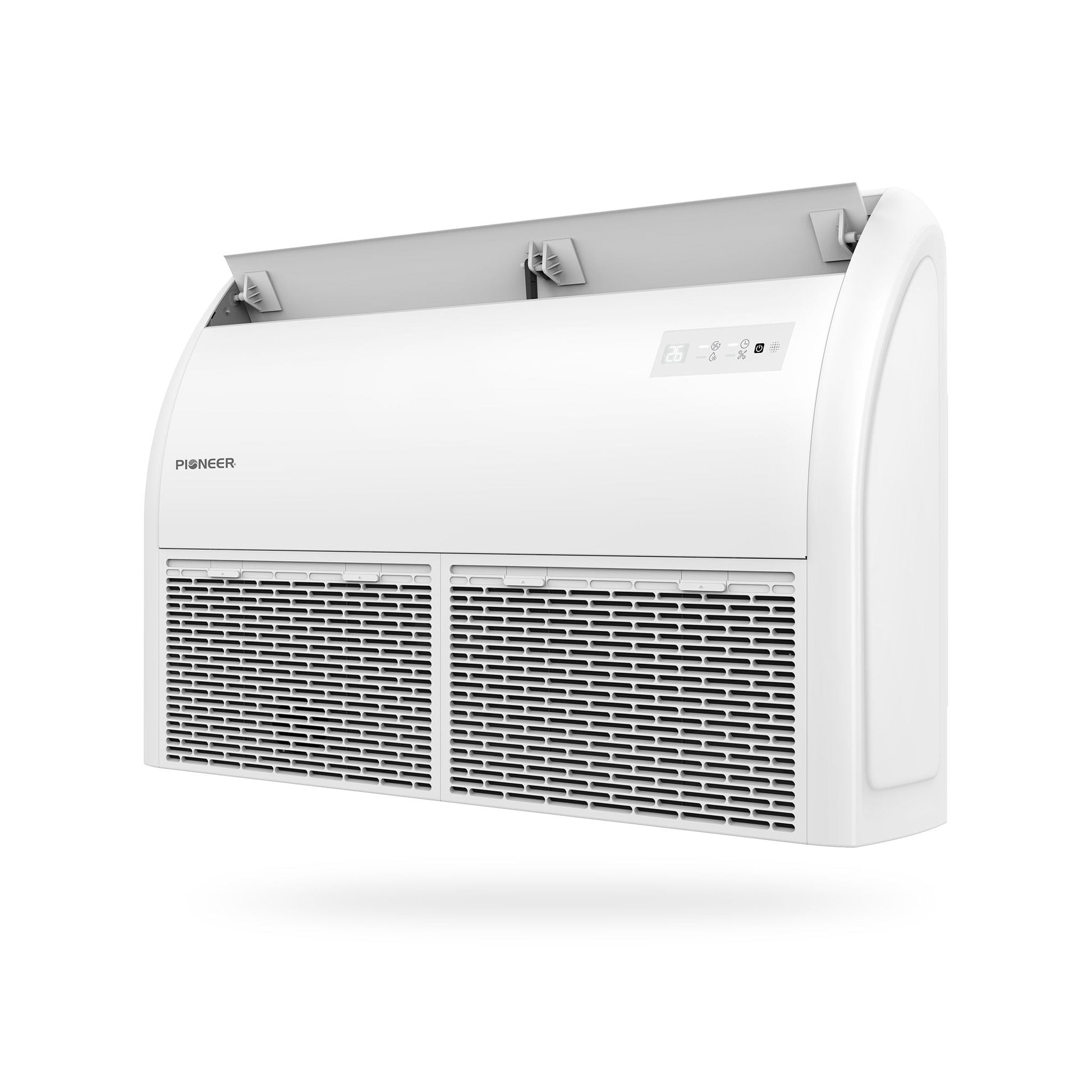

Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

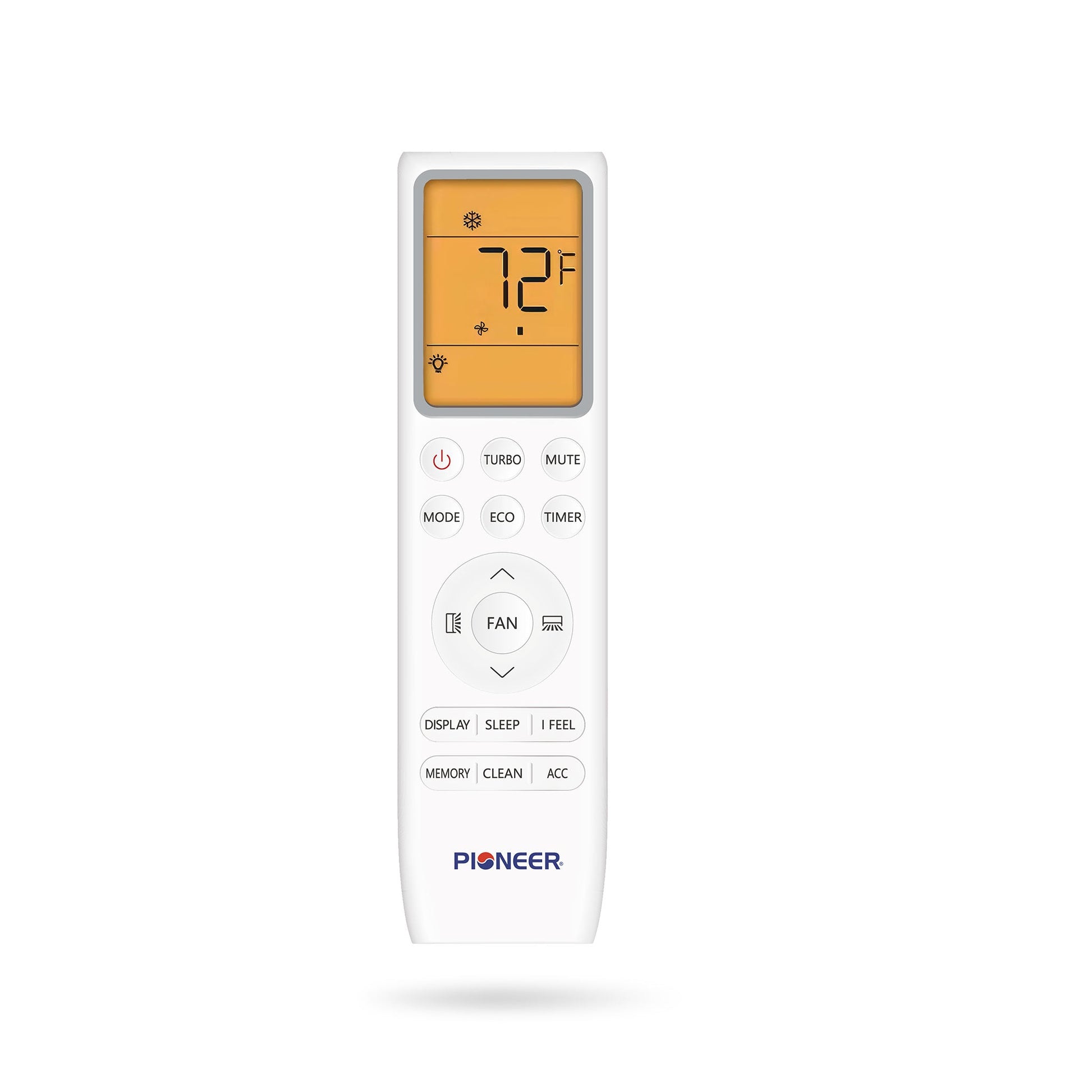

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Powerful & versatile capacity (22,200 BTU)
Built for large spaces (~800–1,100 sq ft), this unit delivers strong cooling and heating while maintaining comfort across open layouts and high‑occupancy areas.
-
Balanced efficiency (20 SEER2)
Offers solid energy performance for its class, helping to reduce electricity costs while providing dependable year‑round climate control.
-
Flexible installation options
Floor‑ceiling‑low‑wall design adapts to diverse room styles and architectural needs—mount low on wall, near ceiling, or under windows—without compromising airflow.
-
Inverter heat pump technology
Variable‑speed DC inverter allows precise temperature regulation, smoother operation, and quieter cycling vs. fixed‑speed systems.
-
All‑season performance mode
Efficiently handles cooling, heating, dry, and ventilation modes, removing the need for separate HVAC systems in many climates.
-
Smart control ready
Compatible with optional Wi‑Fi control, enabling remote adjustments via smartphone app for scheduling and energy management.
-
Quiet comfort for daily use
Designed for low noise operation, making it suitable for living rooms, bedrooms, and multi‑purpose family spaces.
Q&A
Q: What room size is this 22,200 BTU mini split ideal for?
A: Perfect for large rooms (approx. 750–1,100 sq. ft), including living rooms, offices, and open-plan spaces.
Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating.
Q: What installation options does this unit offer?
A: Flexible floor, ceiling, or low-wall installation, ideal for spaces with limited wall clearance or open layouts.
Q: How energy-efficient is the 20 SEER2 rating?
A: With 20 SEER2, it provides high efficiency, reducing energy consumption while maintaining consistent comfort.
Q: What is included in the full set?

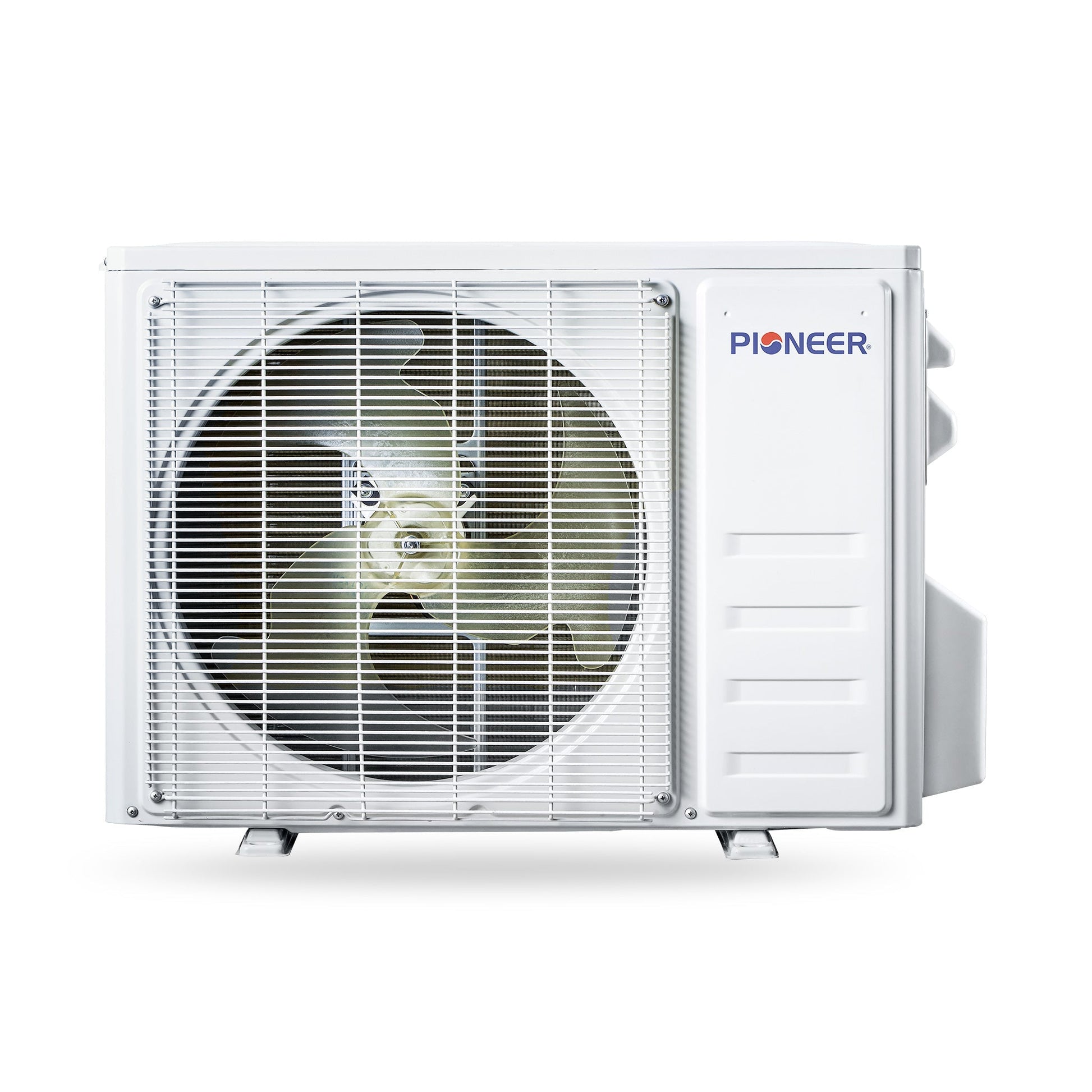

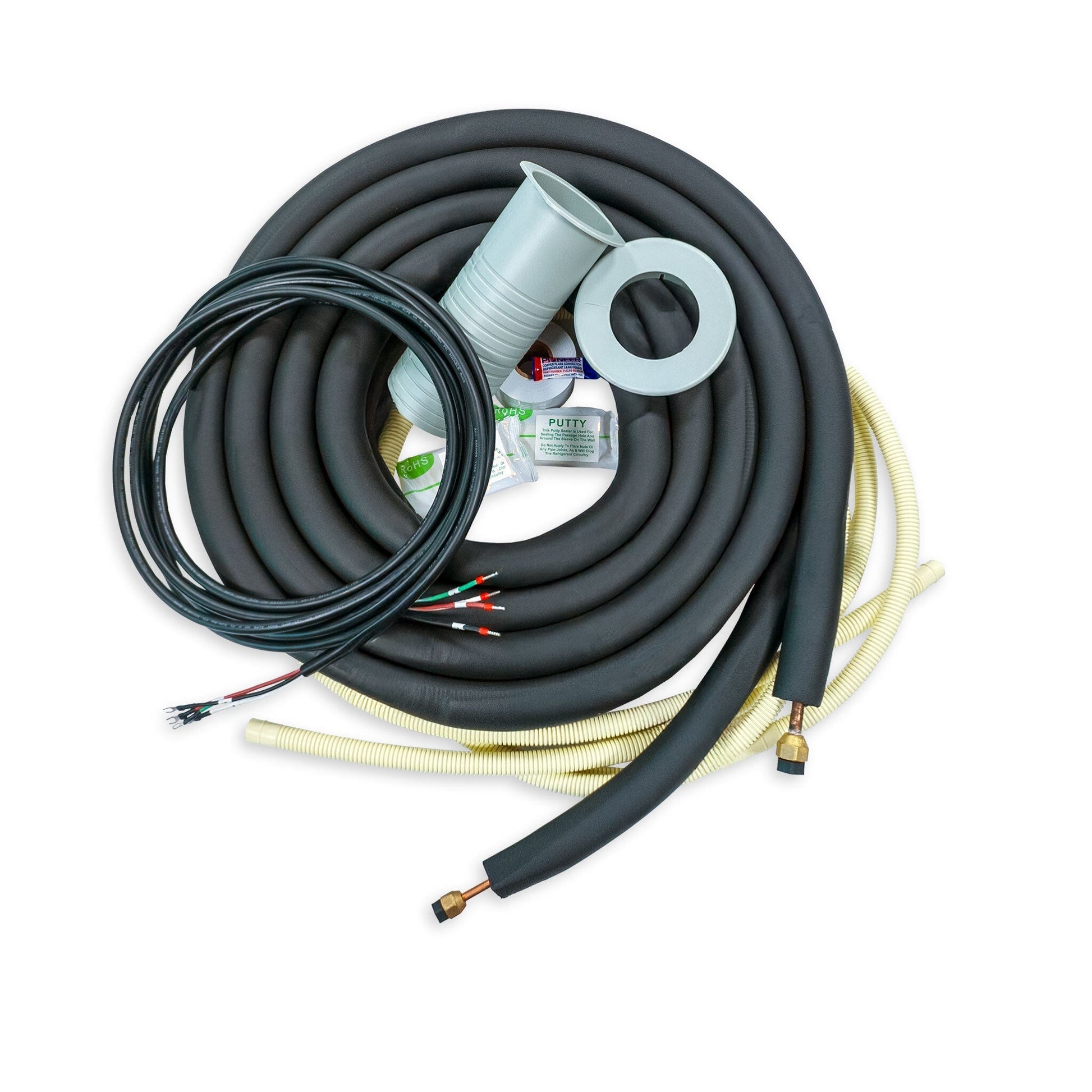

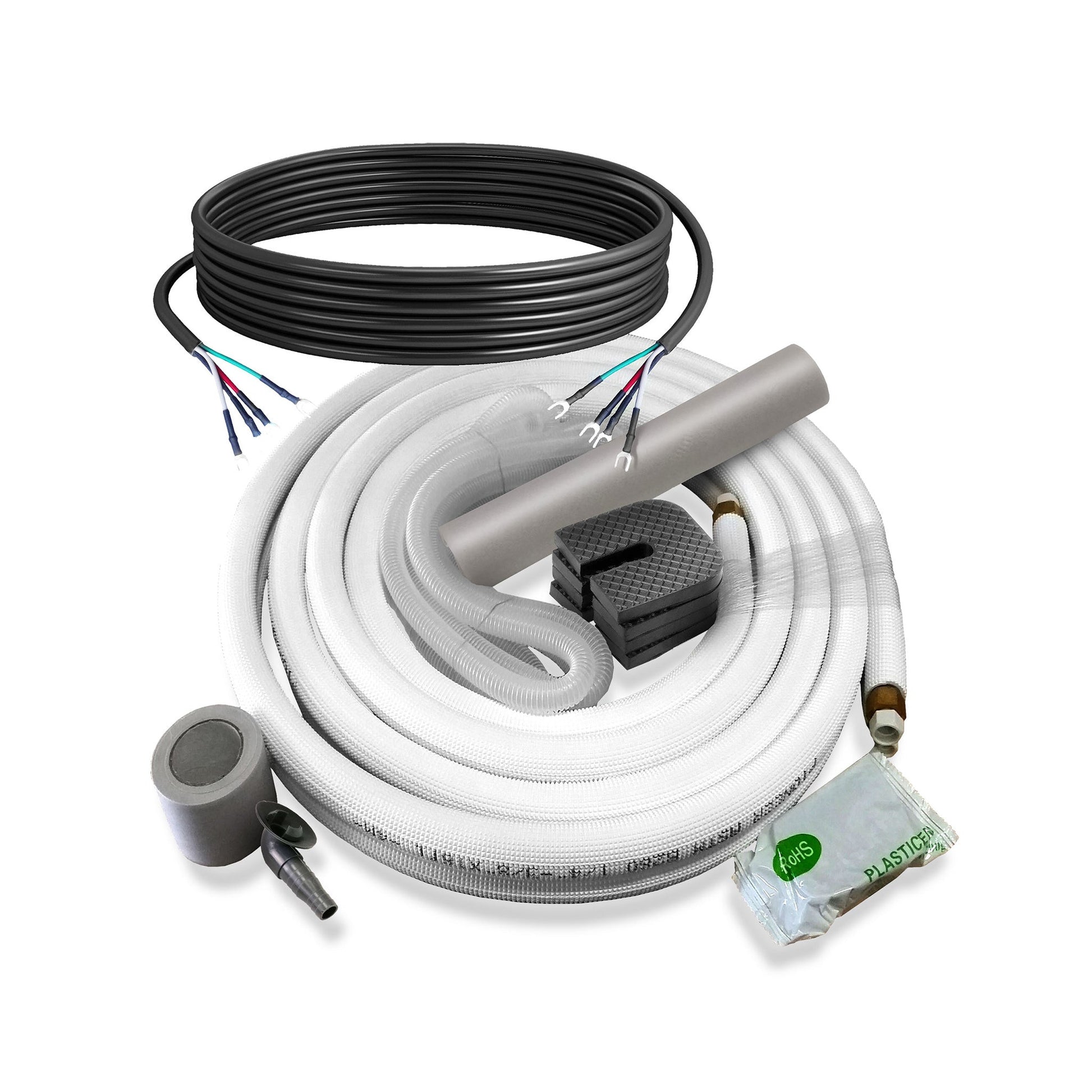

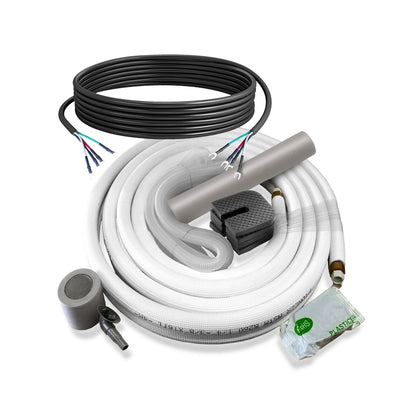

A: Includes indoor unit, outdoor condenser, and pre-charged installation kit for easy setup.
Q: Does it support Wi-Fi or smart control?
A: Yes, compatible with Wi-Fi modules for remote operation, scheduling, and monitoring via smartphone.
Q: How quiet is the indoor unit?
A: Ultra-quiet operation, typically 30–40 dB, suitable for bedrooms, living areas, and offices.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for even temperature distribution.
Q: Is it suitable for multi-zone setups?
A: Yes, compatible with Pioneer multi-zone systems for flexible whole-home or multi-room configurations.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 20 SEER2 efficiency for 650–900 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the floor/ceiling/low-wall unit
-
Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and floor/ceiling damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and full capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and energy consumption
-
Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
