Pioneer Multi (4) Circuit Quantum Ultra Series 22.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN040GLSI24M4G

Pioneer Multi (4) Circuit Quantum Ultra Series 22.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN040GLSI24M4G

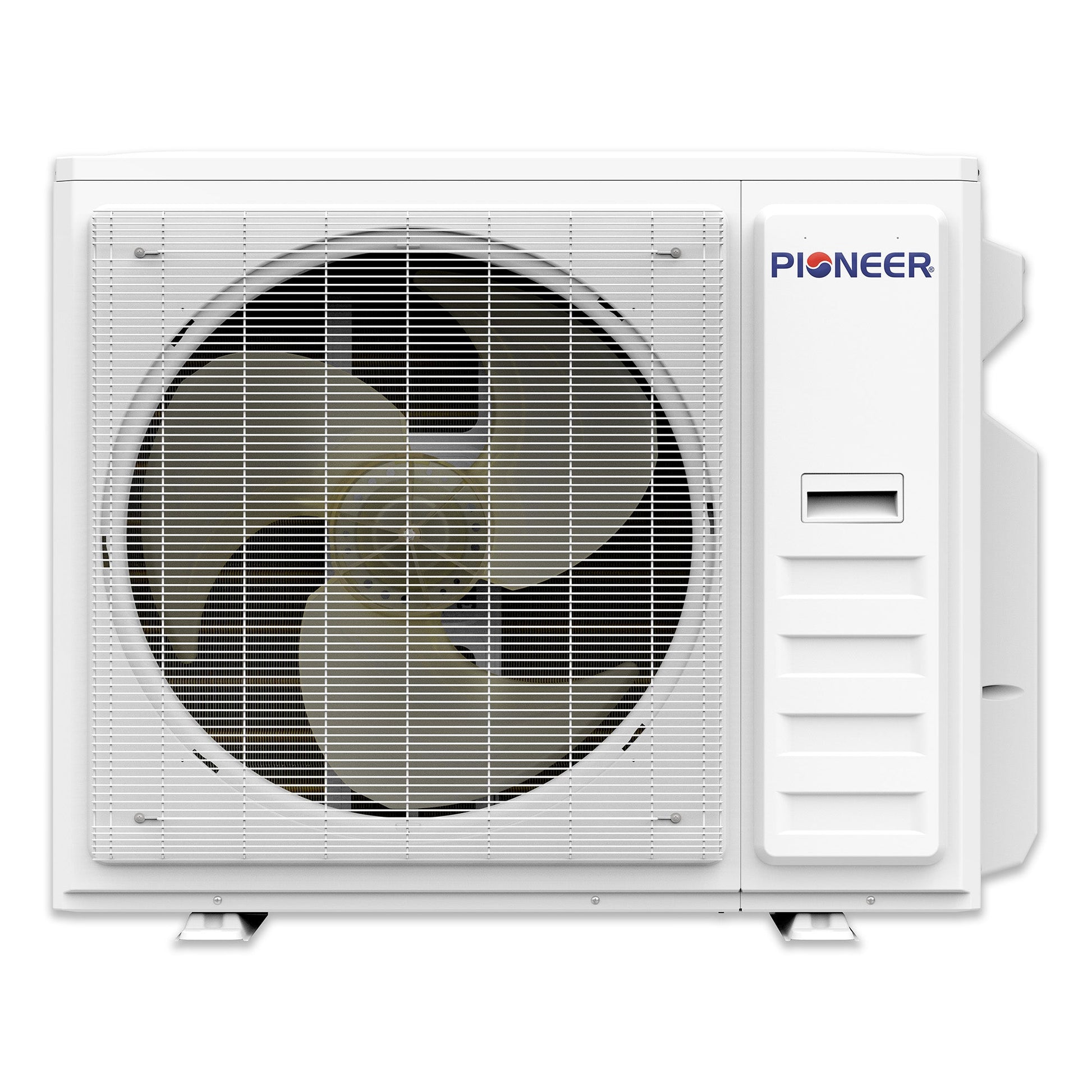

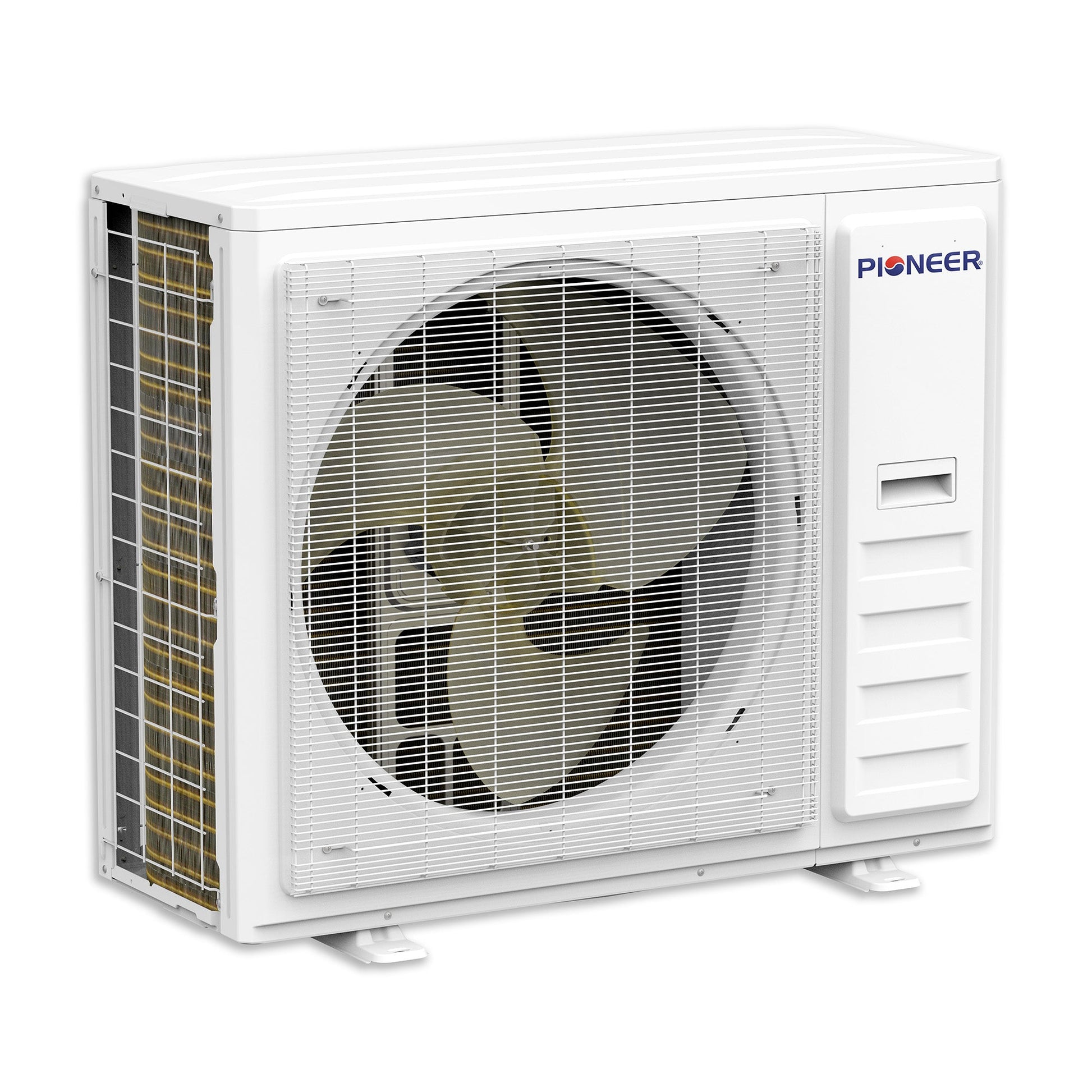

• Ultra High Efficiency Quad Zone (4 Circuit) Outdoor Condensing System
• Cooling Capacity: 35,000 BTU with 22.5 SEER2 / 11.1 EER2 efficiency
• Heating Capacity: 36,000 BTU with 10 HSP2 / 3.5 COP2 efficiency
• Energy-Star Cold-Climate Designated Performance
• Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Precharged to Cover Up to 100 Ft. of Total Combined Attached Lineset Length

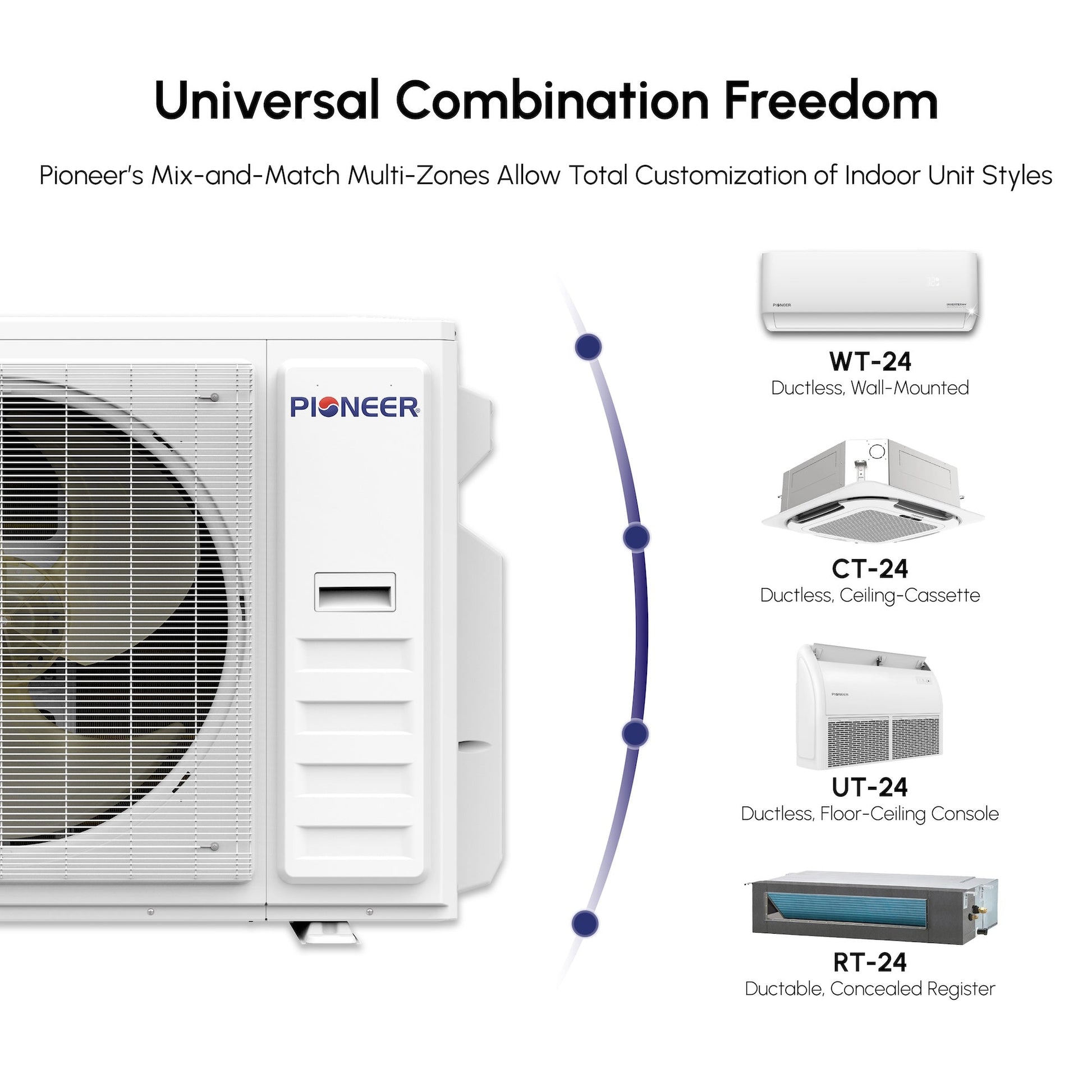

• Can be Utilized as a Stronger Triple or Dual-Zone System by Leaving 3rd and/or 4th Zone Closed
• Power Supply: 208~230V, 60Hz, 1Ph
• Communication Protocol: Current Loop
• Min-Max Load Attached: 18,000~48,000 BTU/h
• Cooling Rated Capacity (Ductless): 35,000 BTU/h
• Cooling Rated Capacity (Ducted): 34,000 BTU/h
• Cooling SEER2 (Ductless): 22.5 BTU/W.h
• Cooling SEER2 (Ducted): 20.0 BTU/W.h
• Cooling EER2 (Ductless): 11.1 BTU/W.h
• Cooling EER2 (Ducted): 11.7 BTU/W.h
• Heating Rated Capacity (Ductless): 36,000 BTU/h
• Heating Rated Capacity (Ducted): 36,000 BTU/h
• Heating HSPF2 Region IV/V (Ductless): 10.0 / 7.8 BTU/W.h
• Heating HSPF2 Region IV/V (Ducted): 8.5 / 7.3 BTU/W.h
• Heating C.O.P.2 47°F/5°F (Ductless): 3.5 / 2.0 W/W
• Heating C.O.P.2 47°F/5°F (Ducted): 3.2 / 1.9 W/W
• Refrigerant Type: R454B

• Suitable Area: 700~1,350 sq ft
• Sound Level: 65 dB(A)
• Circuit Breaker Utilized: 35A (double-pole)
• Net Dimensions (WDH): 42"-1/4 x 18"-3/8 x 33"-1/2 Inches
• Carton Dimensions (WDH): 44"-5/8 x 20"-7/8 x 38"-1/8 Inches
• Net / Gross Weight: 145.5 / 169.8 lbs
• AHRI Reference: 217048770 (Ductless) / 217048774 (Ducted)


Manuals

• Technical Brochure

• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate (All Ductless / All Ducted)
• Energy Guide

Specifications

What our Experts Think

• Ultra-high efficiency performance: Engineered with 22.5 SEER2 inverter technology, this quad-zone outdoor unit delivers powerful cooling capacity around 35,000 BTU while maintaining excellent energy savings for large multi-room installations.

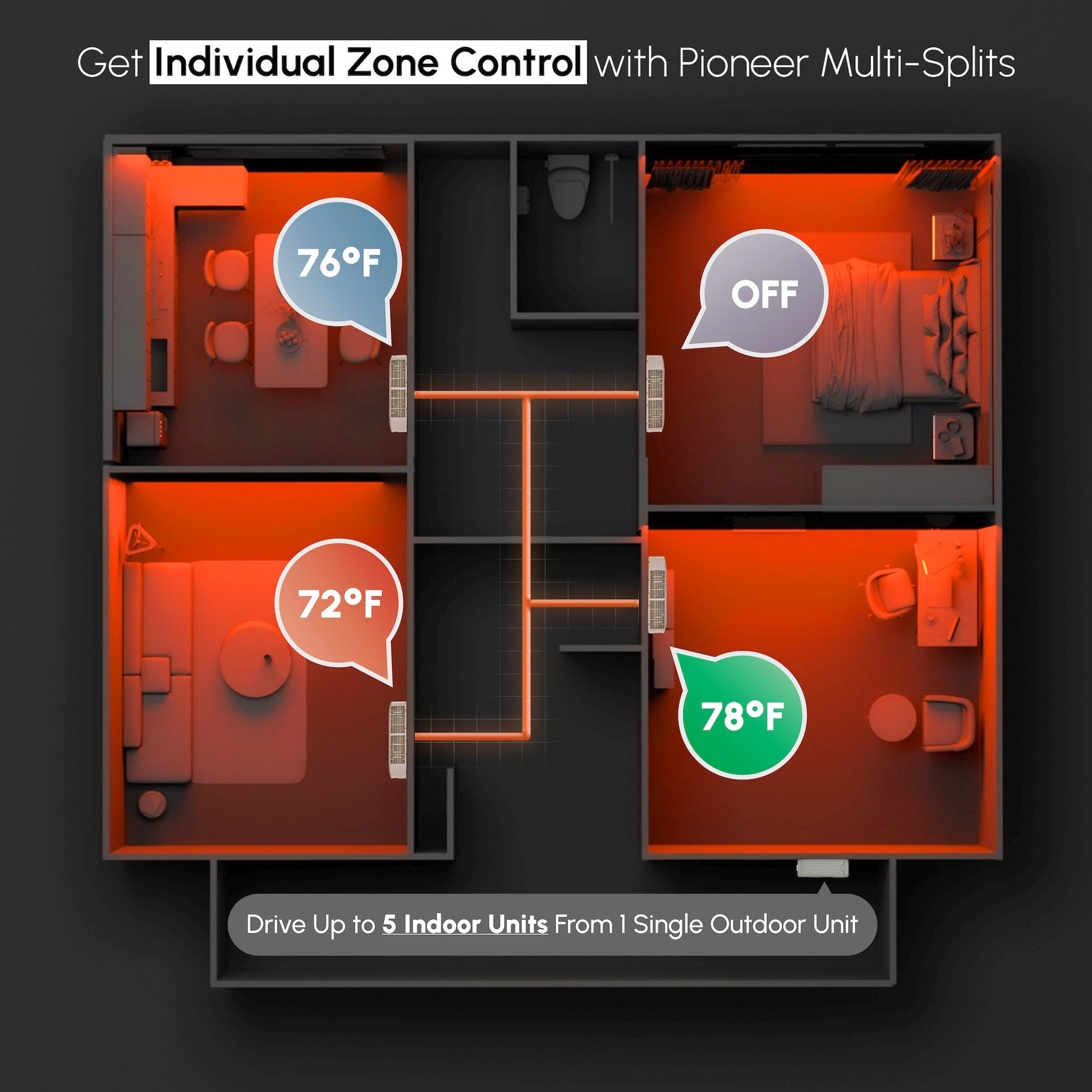

• True multi-zone flexibility: Supports up to four independent indoor circuits, allowing customized comfort in different rooms — or operation as a stronger dual or triple-zone system when fewer zones are connected.

• Cold-climate & extreme-weather ready: Designed for dependable year-round comfort with operation ranges reaching -13 °F heating and up to 131 °F cooling, making it ideal for demanding climates and commercial-grade applications.

• Balanced heating & cooling output: With approx. 36,000 BTU heating capacity and high COP efficiency, the system offers reliable warmth in winter without sacrificing energy performance.

• Installer-friendly configuration: Factory pre-charged refrigerant coverage for extended line-set lengths and standardized 208-230 V single-phase power compatibility help simplify installation and reduce setup time.

• Smart solution for medium-to-large spaces: Recommended coverage of roughly 700–1,350 sq ft makes it a strong choice for residential upgrades, light-commercial projects, and multi-room retrofits.

• Energy-conscious comfort investment: ENERGY-STAR-aligned efficiency and inverter modulation help lower long-term operating costs while maintaining stable indoor temperatures and quieter outdoor performance.
