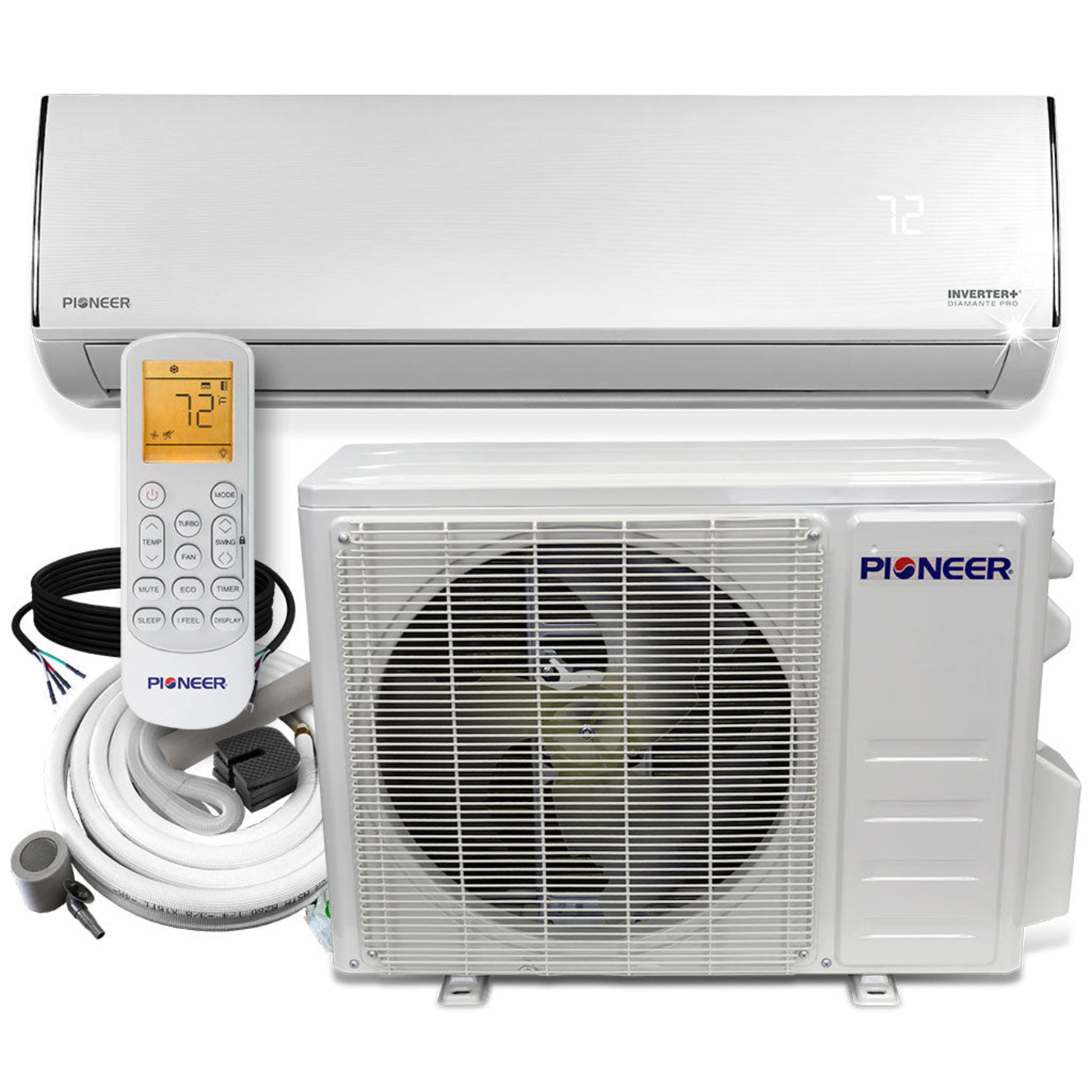

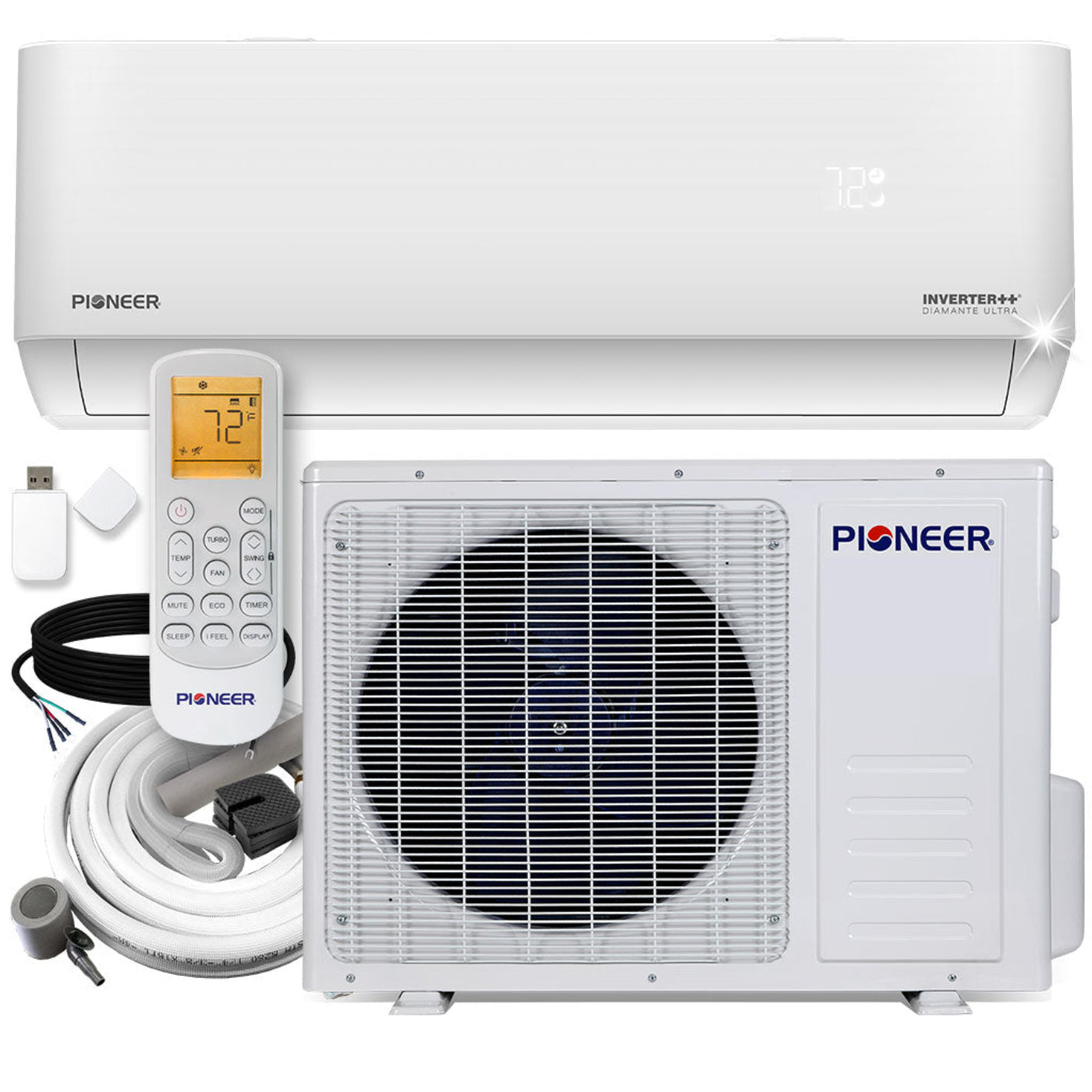

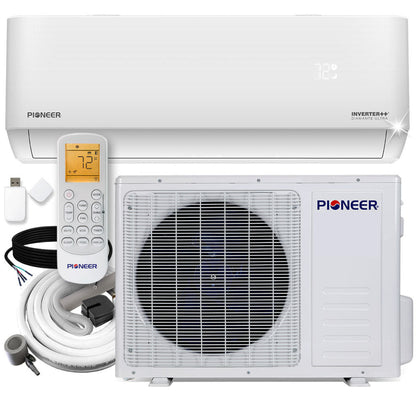

Pioneer Diamante Ultra 24,000 BTU 20 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit - WYT024GLFI22RL

Pioneer Diamante Ultra 24,000 BTU 20 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit - WYT024GLFI22RL

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 20 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 24,000 BTU/H with 9.0 HSPF2 / 3.2 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)
• AHRI Estimated Annual Operating Costs:
• Cooling: $152.00
• Heating: $507.00

Included

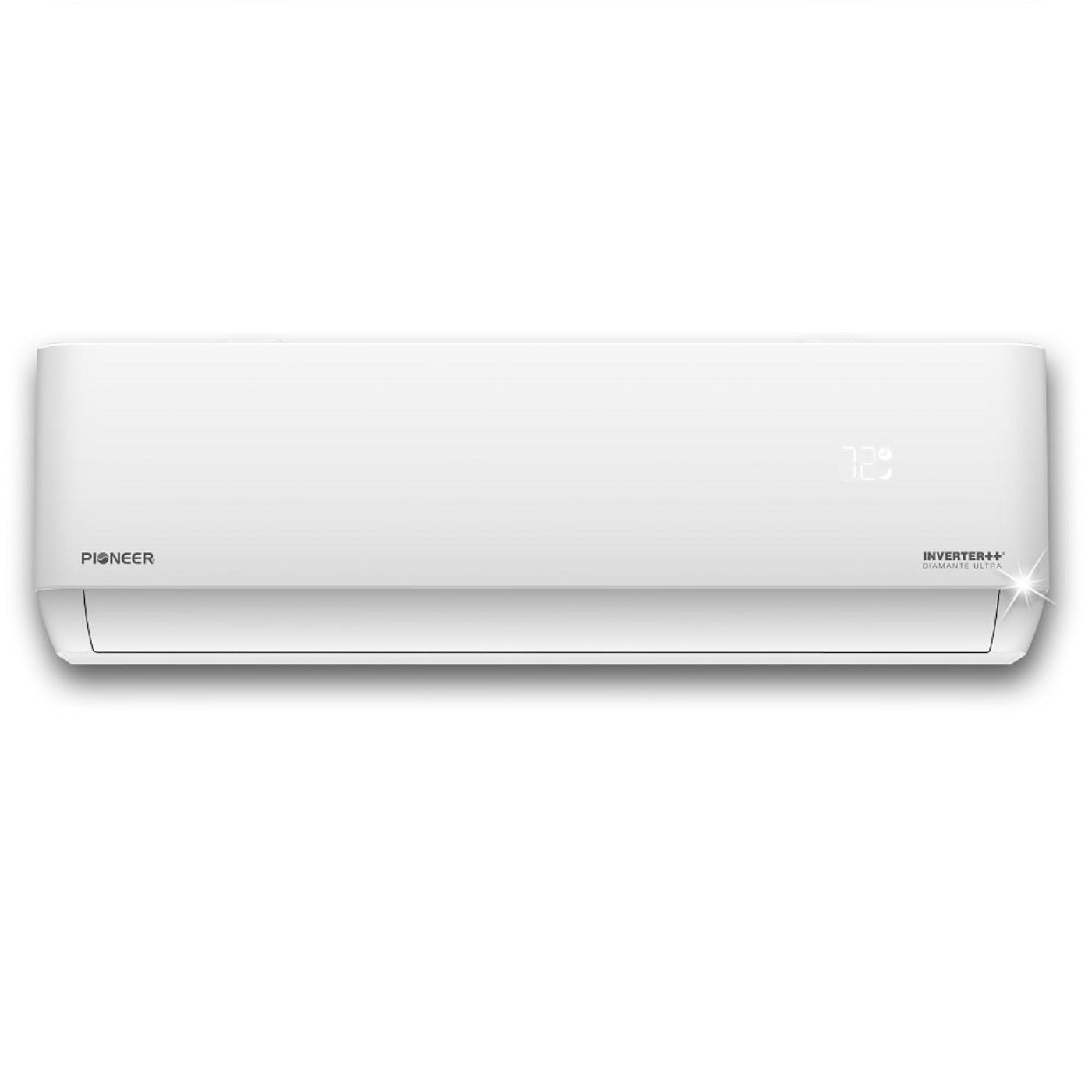

• Indoor Unit

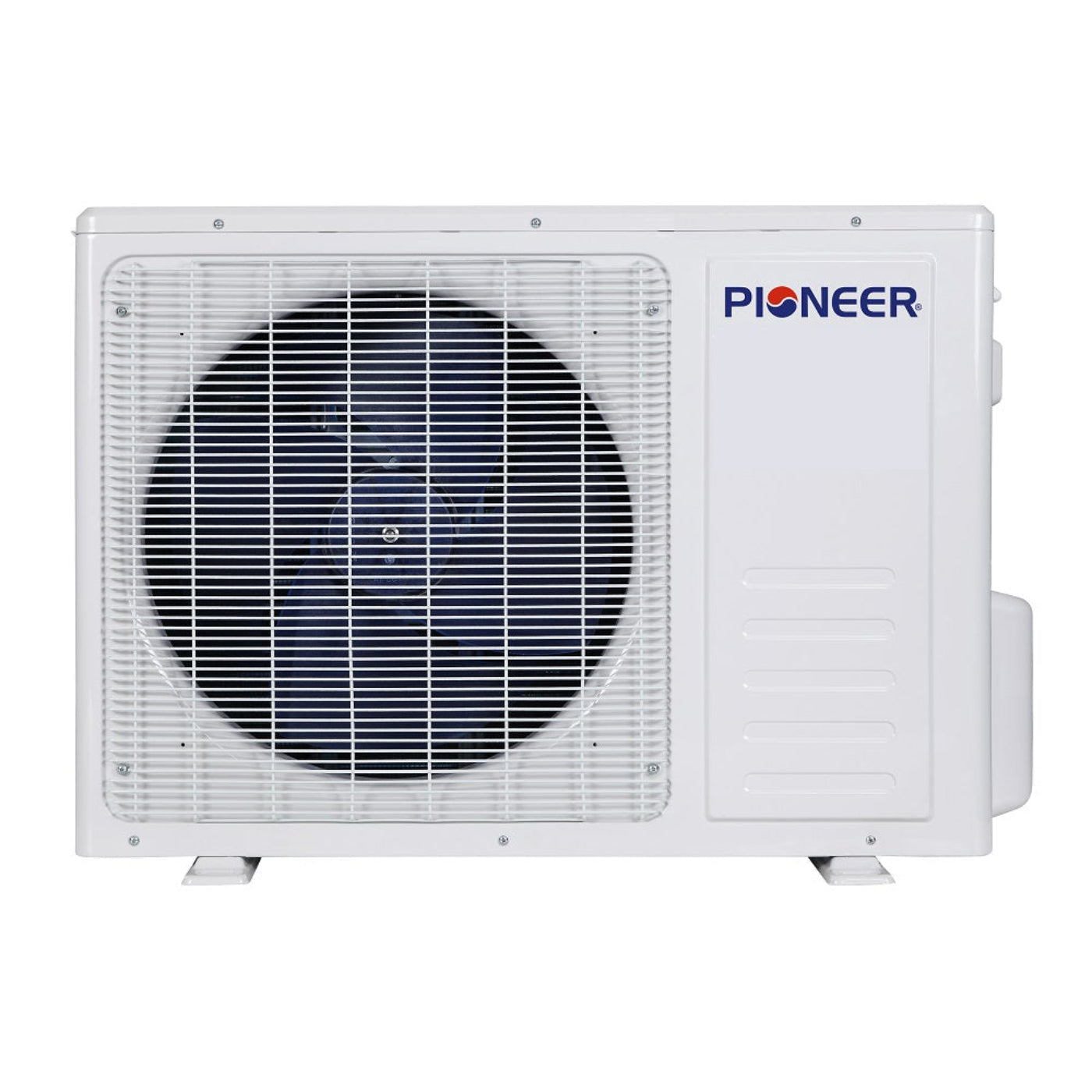

• Outdoor Unit

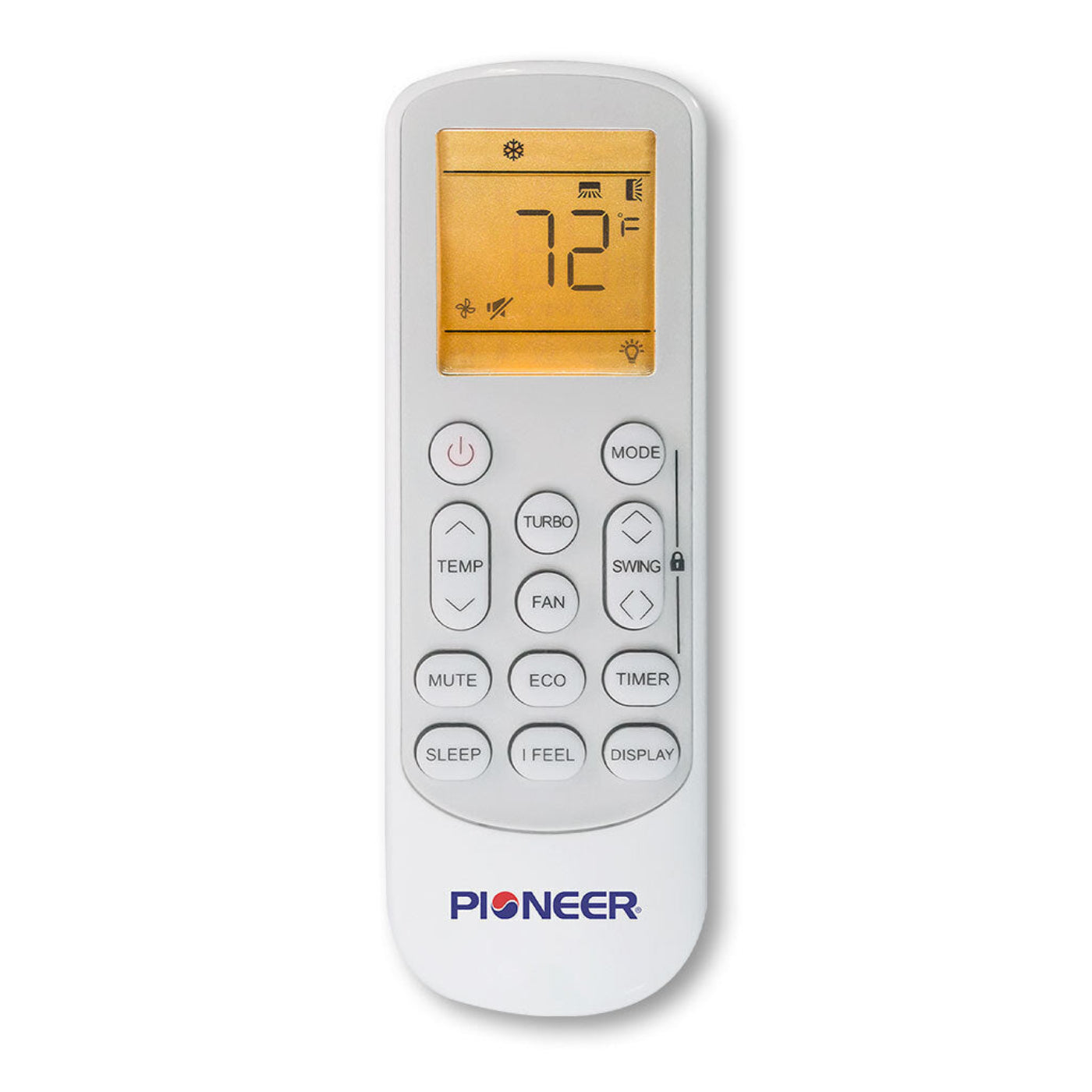

• Wireless Remote Control (with wall holder and batteries)

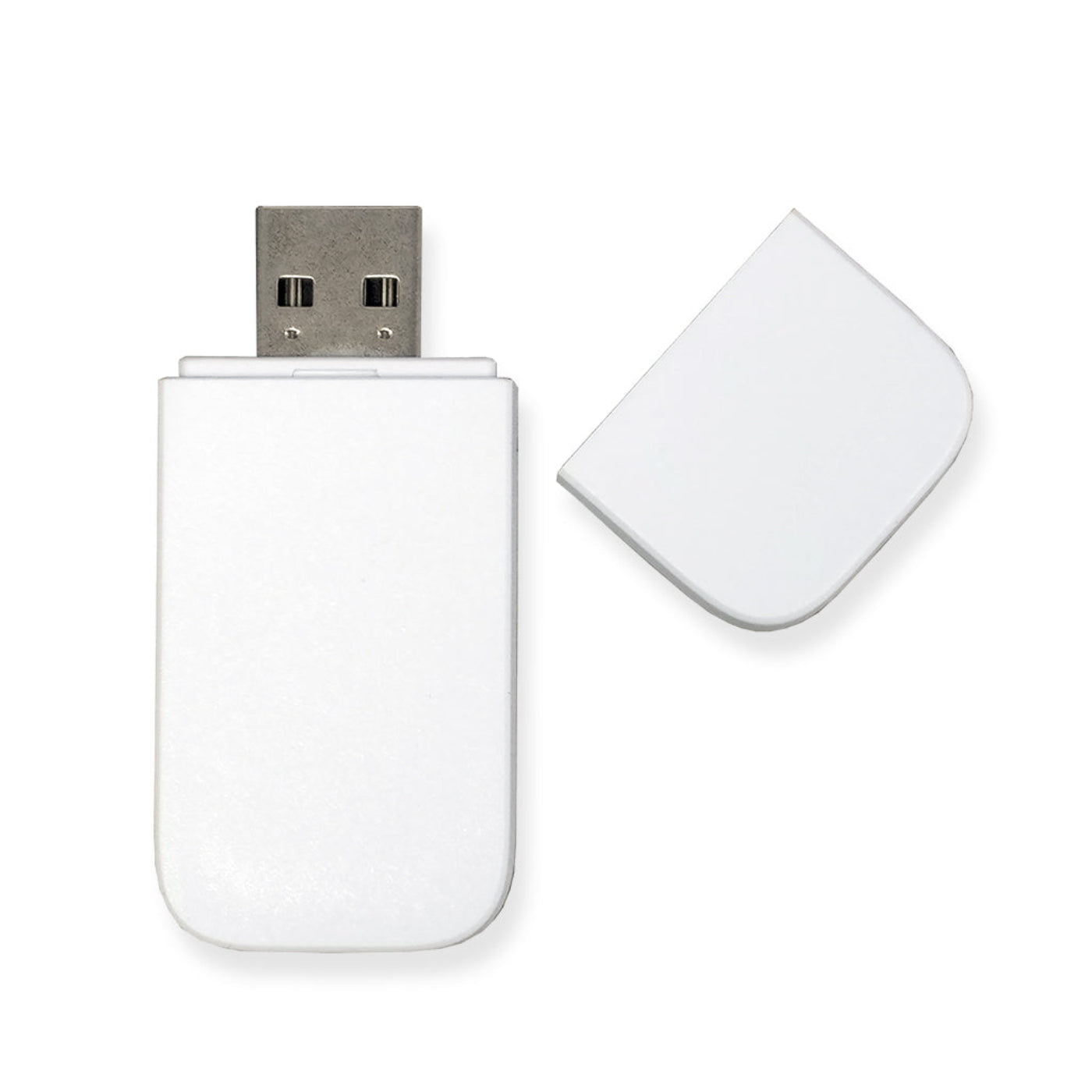

• Internet Control Module

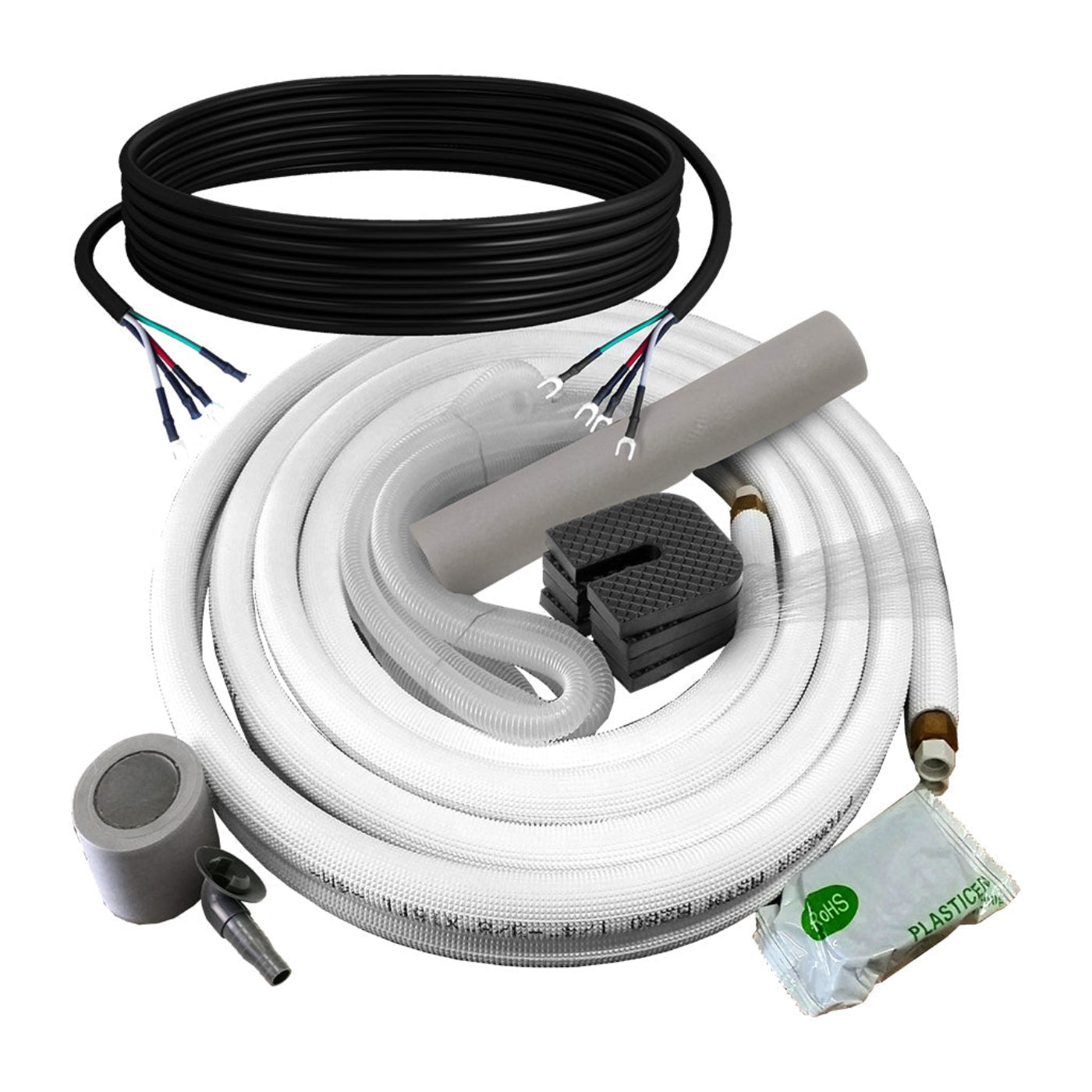

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

What our Experts Think

• High‑efficiency year‑round performance: This Pioneer Diamante Ultra 24,000 BTU mini‑split delivers 20 SEER2 cooling and strong heat pump heating, giving balanced comfort with lower seasonal energy use — ideal for medium‑to‑large rooms (~600–950 sq ft).

• Energy‑Star certified & Wi‑Fi connected: ENERGY‑STAR efficiency means lower operating costs and improved environmental performance, while built‑in Wi‑Fi lets you adjust comfort remotely through a smartphone app.

• Smooth inverter heat pump design: Variable‑speed DC inverter operation provides precise temperature control, reduced cycling, and quieter performance compared with fixed‑speed HVAC systems.

• Ready‑to‑install full set: Includes indoor/outdoor units, remote control, internet control module, 16 ft lineset and electrical wire, drain, and installation accessories — reducing extra part purchases.

• All‑season capability: Engineered to work in low‑ambient conditions (down to –13 °F) and maintain comfort in a wide temperature range, making it suitable for varied climates.

• Quiet, user‑friendly operation: Indoor sound levels as low as ~31 dB help keep spaces peaceful, while dual‑swing airflow and dual‑drainage enhance comfort and moisture control.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ductless mini-split air conditioner with integrated Inverter++ heat pump, designed for efficient single-zone or multi-zone climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 24,000 BTU cooling with heat pump heating, suitable for medium to large rooms.

Q3: How energy-efficient is this unit?
A: Features 20 SEER2 efficiency, Energy-Star rating, and Inverter++ technology for precise temperature control and lower energy consumption.

Q4: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home systems.

Q5: Does it include installation accessories?
A: Yes, this full set includes indoor unit, outdoor condenser, 16 ft line set, and installation kit for complete setup.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential circuits.

Q7: How does inverter++ technology improve performance?
A: Variable-speed inverter++ control ensures quiet operation, consistent comfort, and energy savings.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, ensuring year-round comfort.

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler for optimized airflow and quiet operation.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, bedrooms, offices, or medium residential spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat transfer and inverter performance.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for proper airflow and consistent comfort.

• Schedule professional servicing yearly for inverter diagnostics, refrigerant checks, and system optimization.
