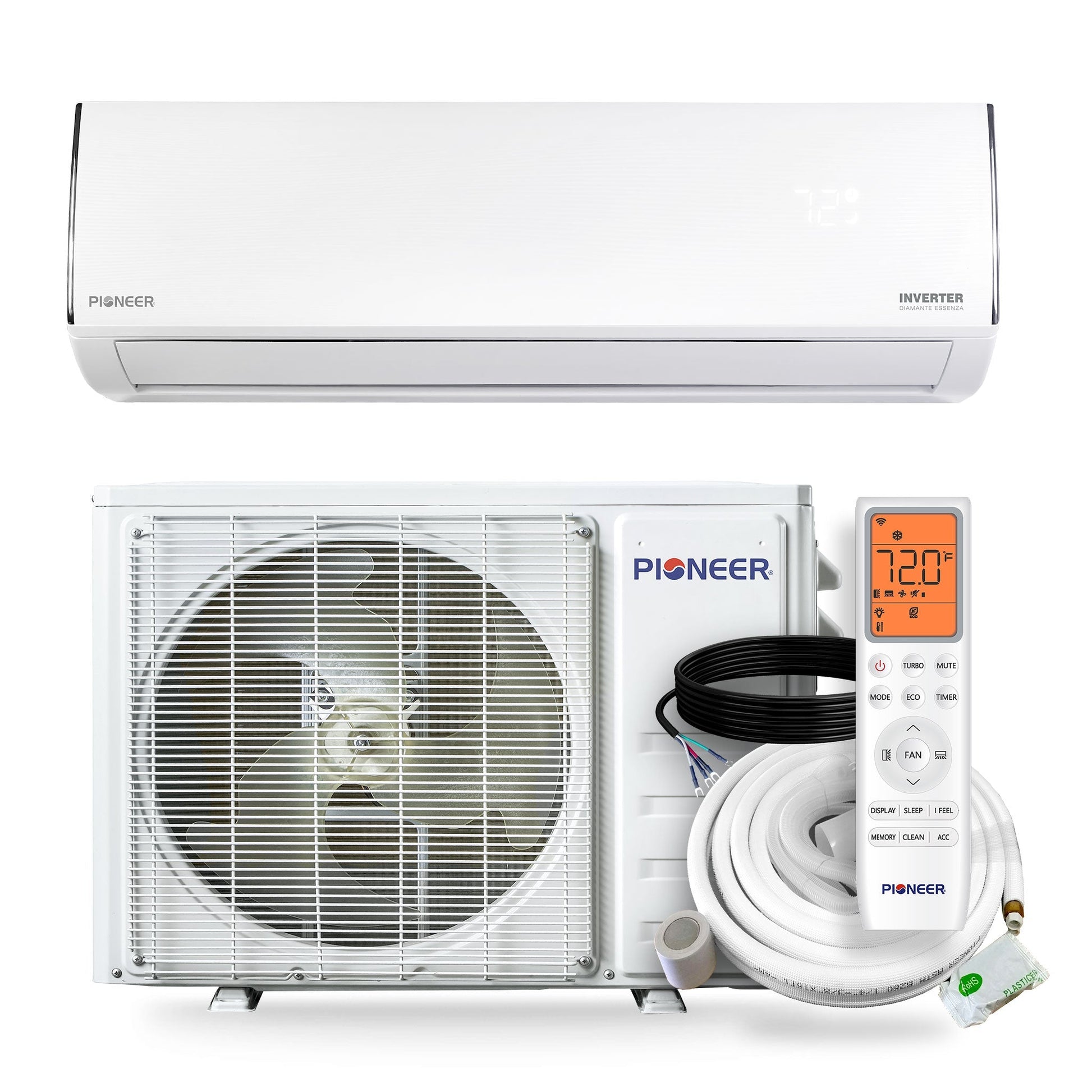

Pioneer Diamante Essenza 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT024GLUI17RL

Pioneer Diamante Essenza 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT024GLUI17RL

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

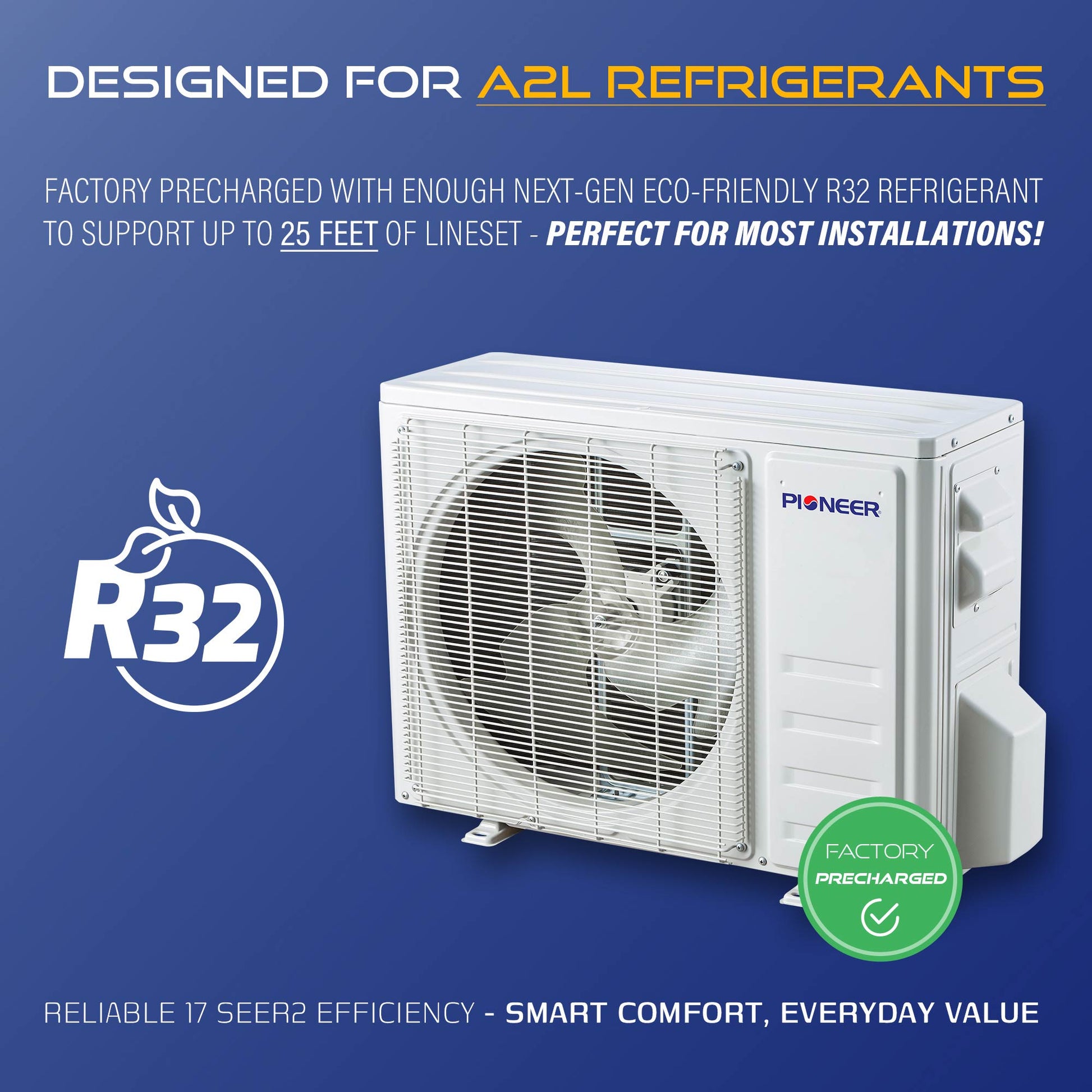

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Strong mid‑range performance: With 23,000 BTU capacity and a 17 SEER2 rating, this unit delivers reliable cooling and heating for medium‑to‑large rooms without overcomplicating installation or operation.

• Balanced comfort & efficiency: The inverter heat pump design helps maintain stable indoor temperatures and reduces energy use compared with non‑inverter systems — ideal for living rooms, open floor plans, and larger bedrooms.

• Year‑round HVAC solution: Provides dependable cooling in summer and heating in cooler months, making it versatile for climates with variable seasonal demands.

• Standard 230 V residential compatibility: Designed for 208–230 V electrical service, supporting straightforward installation in most homes with professional HVAC setup.

• Quiet indoor operation: Low sound levels help preserve a peaceful environment for living spaces, studies, or entertainment areas.

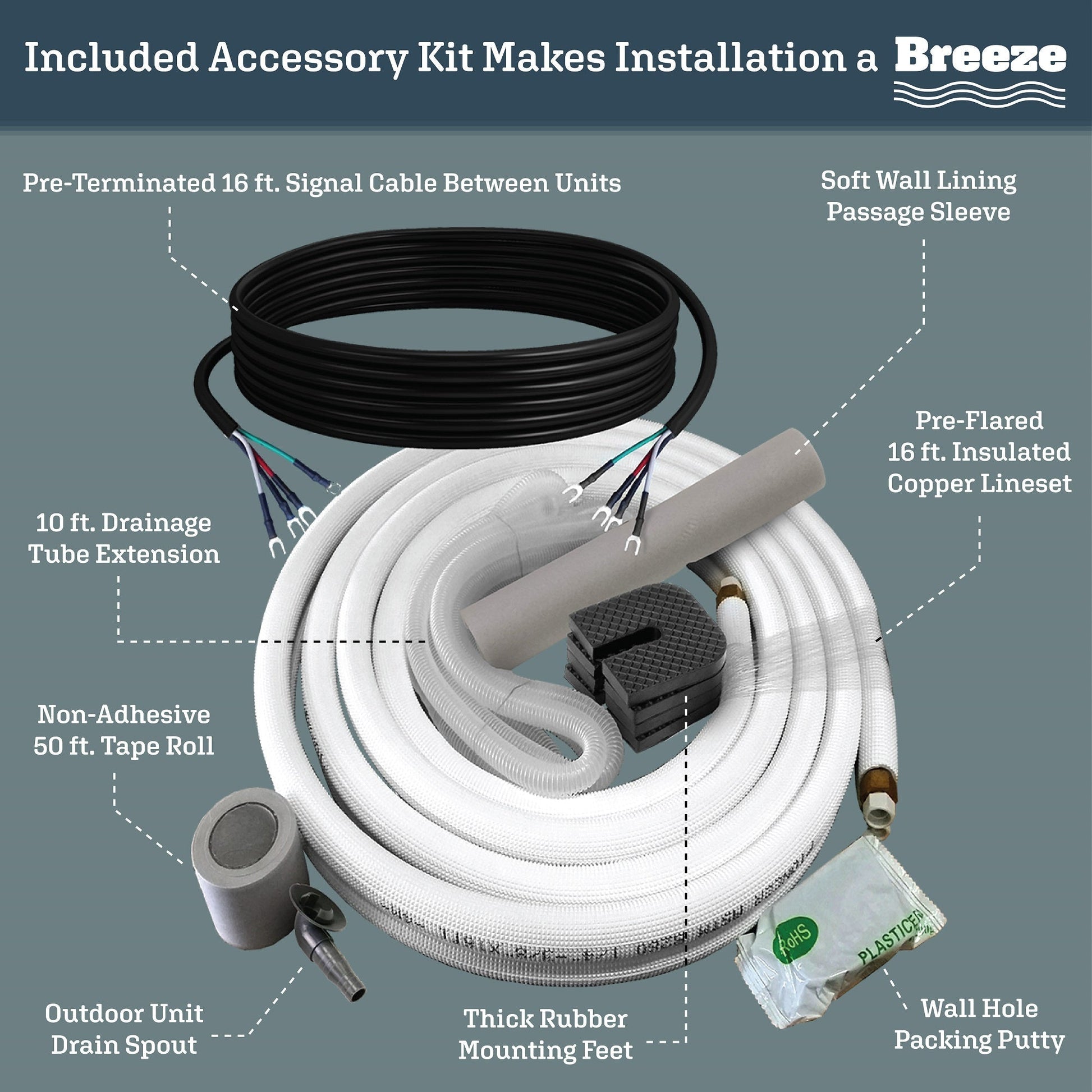

• Installation convenience: Comes with a 16 ft pre‑charged line set kit, reducing installation time and complexity.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a high-wall ductless mini-split air conditioner with integrated heat pump, designed for efficient single-zone cooling and heating.

Q2: What cooling and heating capacity does it provide?
A: Delivers 23,000 BTU cooling with reliable heat pump heating, suitable for medium to large rooms.

Q3: How energy-efficient is this unit?
A: Features 17 SEER2 efficiency, helping reduce electricity costs while providing consistent comfort.

Q4: What room size is this mini-split suitable for?
A: Recommended for 700 – 1,000 sq ft, depending on insulation, layout, and climate.

Q5: Does it include installation accessories?
A: Yes, includes a 16 ft installation kit with pre-insulated copper line set and necessary hardware.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, suitable for standard residential or light-commercial circuits.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures precise temperature, quieter operation, and energy efficiency.

Q8: Can it provide heating in colder climates?
A: Yes, the heat pump supports low-ambient heating for year-round comfort.

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler with optimized airflow and quiet operation.

Q10: Is this system suitable for residential or light-commercial use?
A: Yes, ideal for living rooms, bedrooms, offices, or small commercial spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure proper heat transfer and inverter performance.

• Inspect condensate drain lines and ports regularly to prevent water leaks and system interruptions.

• Check refrigerant line insulation and electrical connections annually for safe and efficient operation.

• Use the self-clean function periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for consistent airflow and reliable comfort.

• Schedule yearly professional servicing for inverter diagnostics, refrigerant checks, and system optimization.
