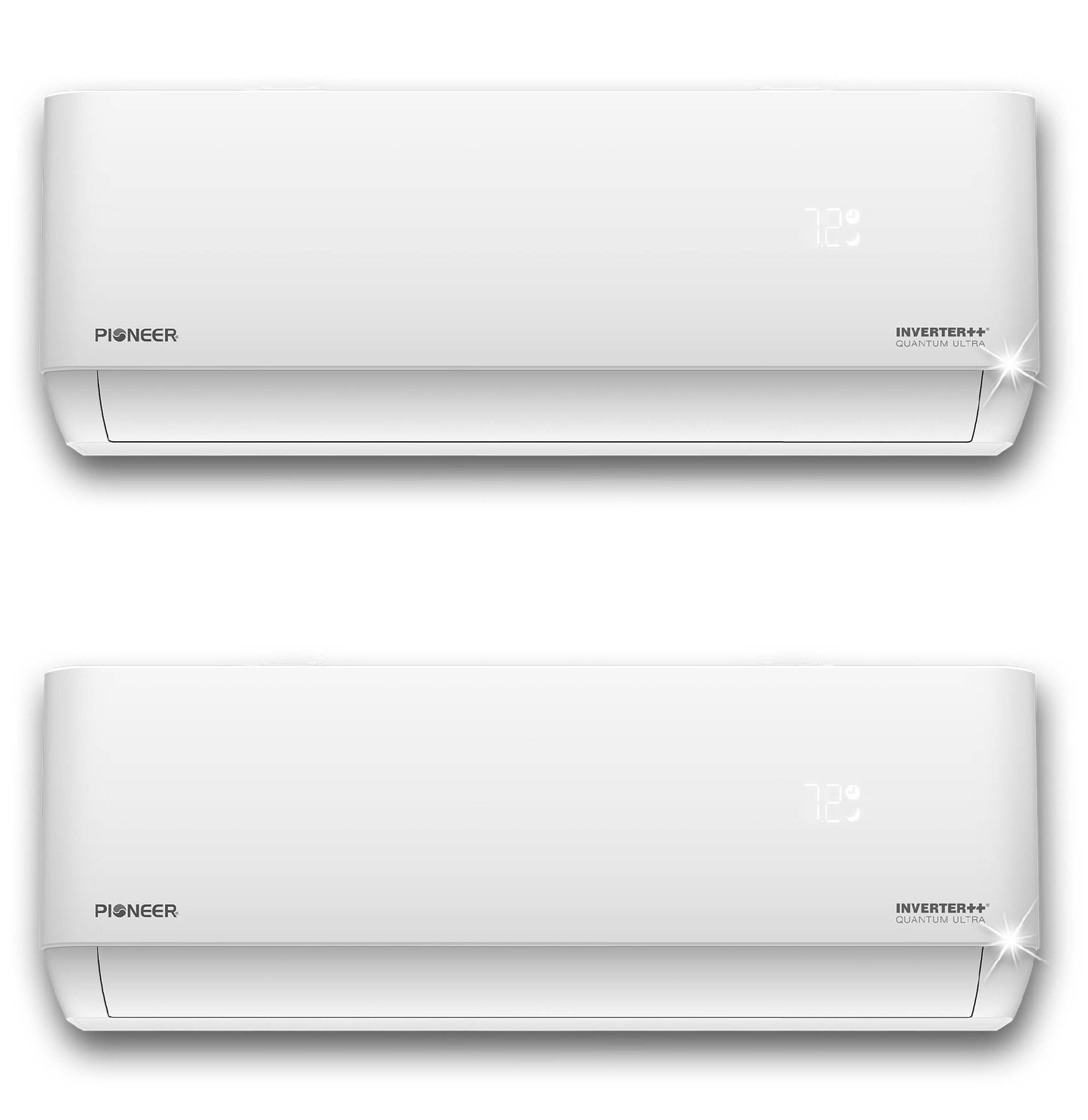

Pioneer Dual Split 18000 BTU 1.5-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT020GLSI24M2-9W-9W

Pioneer Dual Split 18000 BTU 1.5-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT020GLSI24M2-9W-9W

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

Features

• Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
• (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 5,100 minimum - 18,700 maximum) with 24 SEER/13.0 EER efficiency
• Heating capacity: 20,000 BTU/H nominal (range 4,900 minimum - 23,000 maximum) with 10 HSPF/3.5 COP efficiency
• Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
• Energy-Star Certified and Wi-Fi Enabled

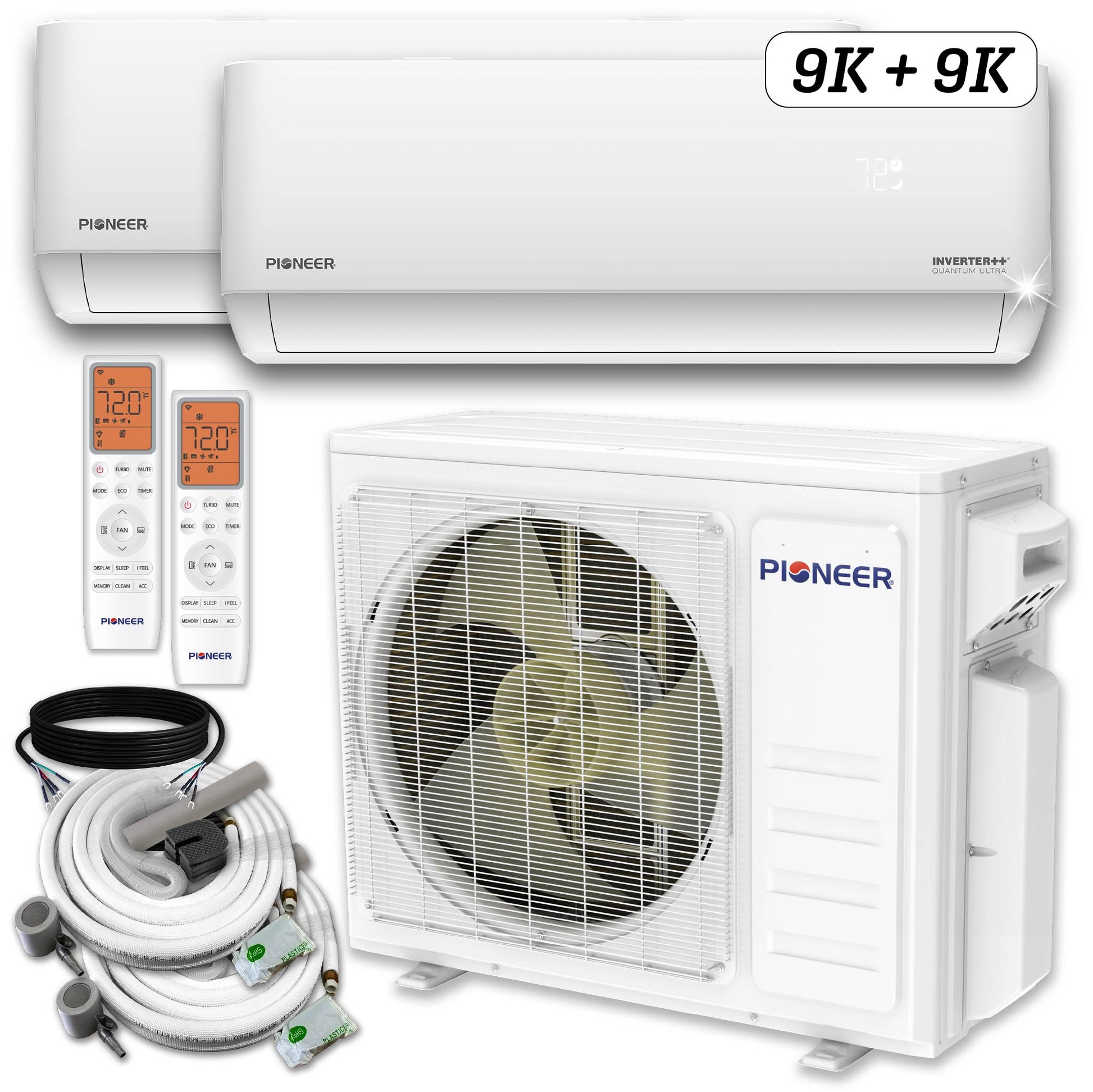

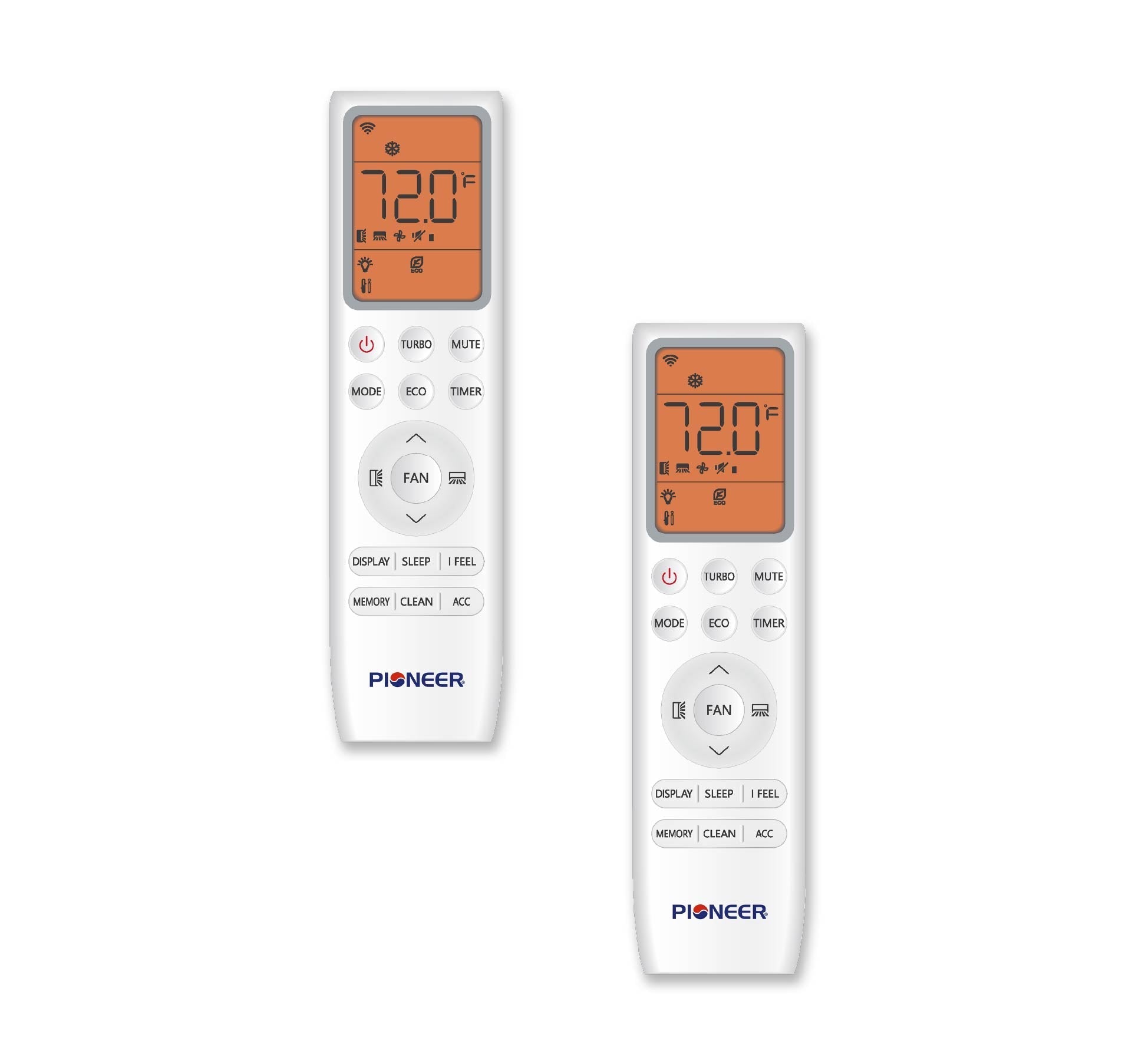

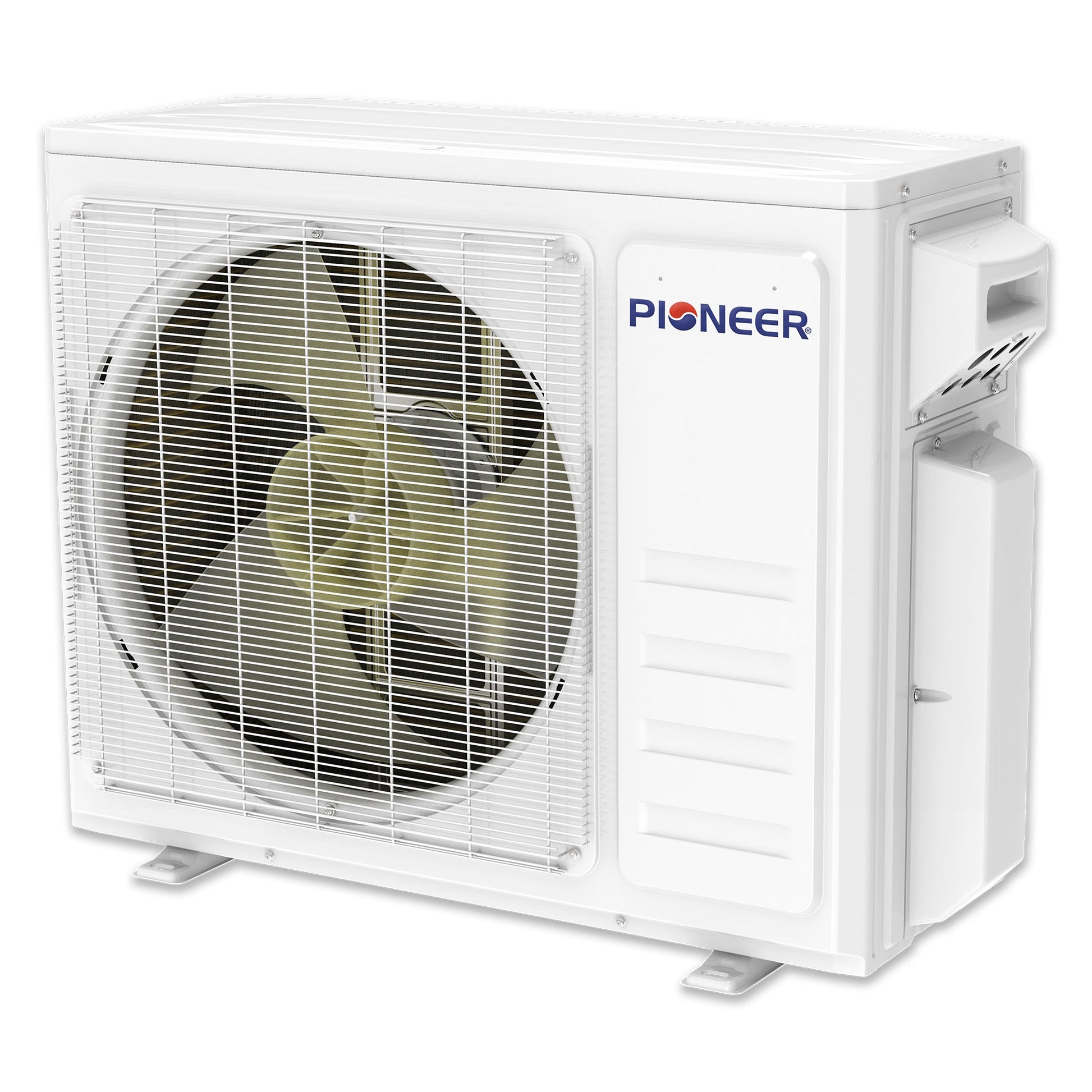

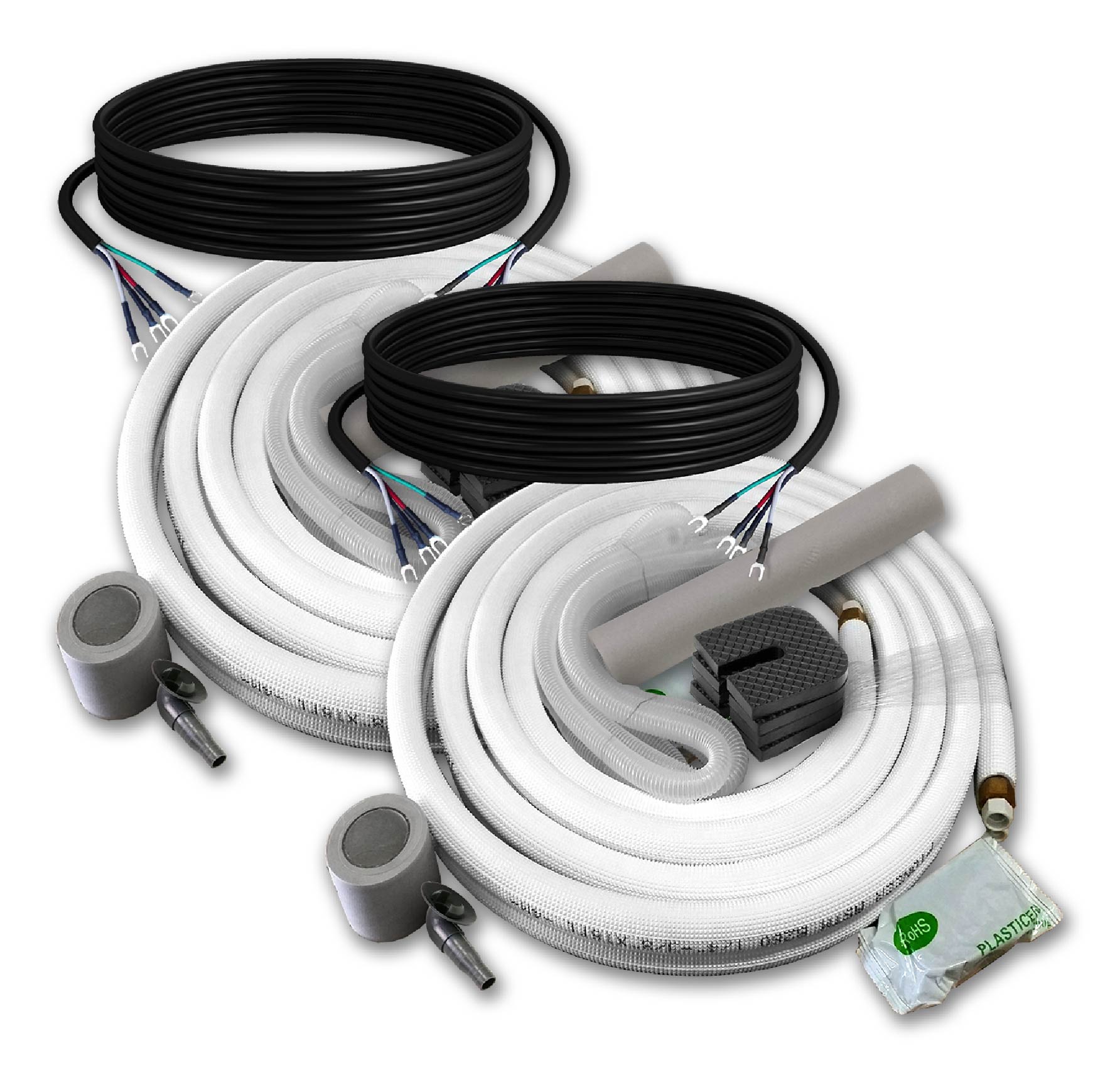

• Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
• Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
• Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
• Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 50 ft long
• Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
• Certified by: ETL, AHRI, DOE for safety, performance and efficiency
• Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

Manuals

• Technical Brochure

• Service Manual

• Submittal Sheet
• Installation Manual (Multi-Split Addendum)
• AHRI Certificate
• Energy Guide

What our Experts Think

• Highly efficient dual‑zone climate control: This 24 SEER2 Energy‑Star‑rated dual‑zone Quantum Ultra system delivers strong cooling and heat pump performance while reducing energy costs — ideal for paired spaces like bedrooms, offices, or living/dining areas.

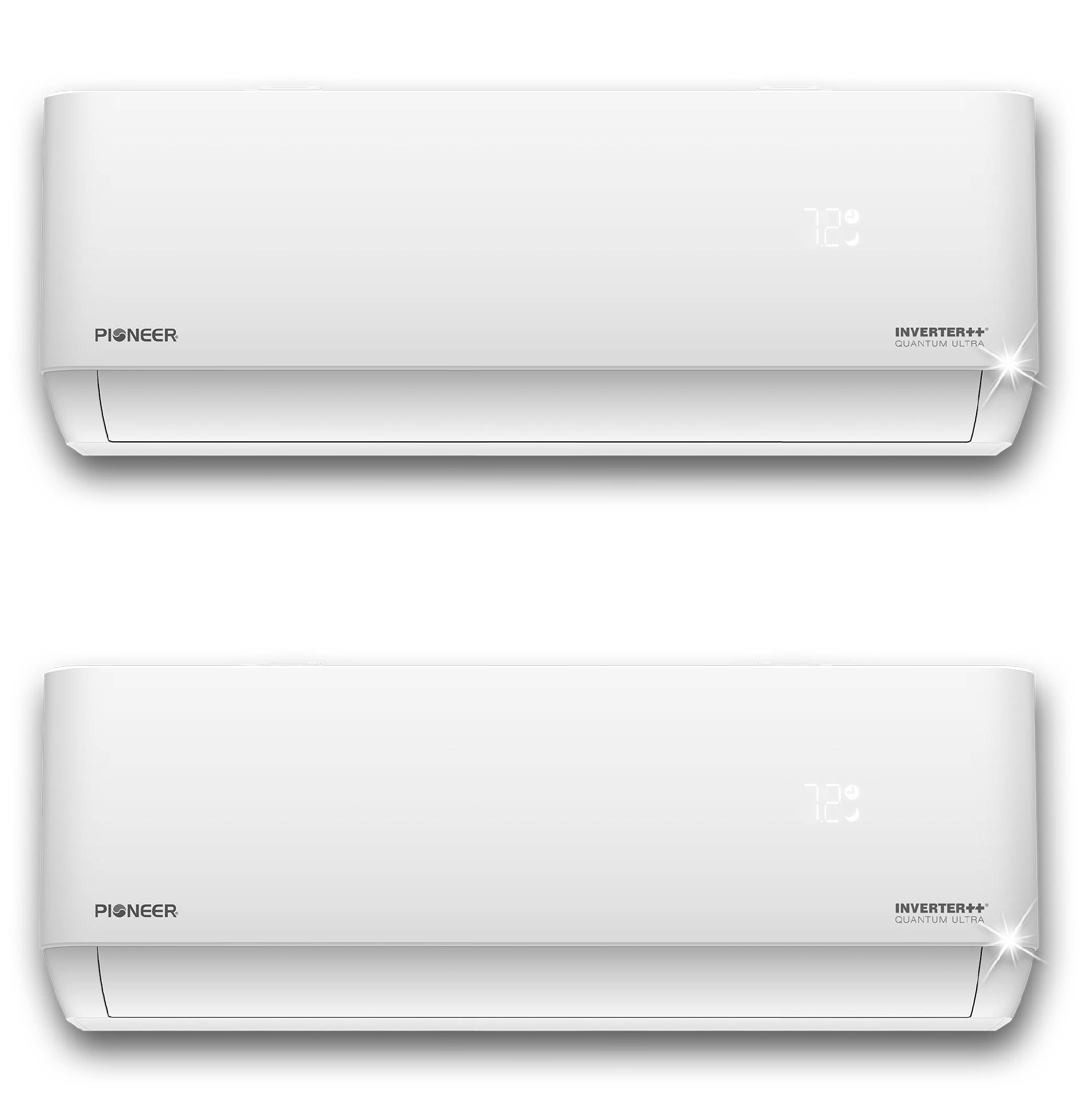

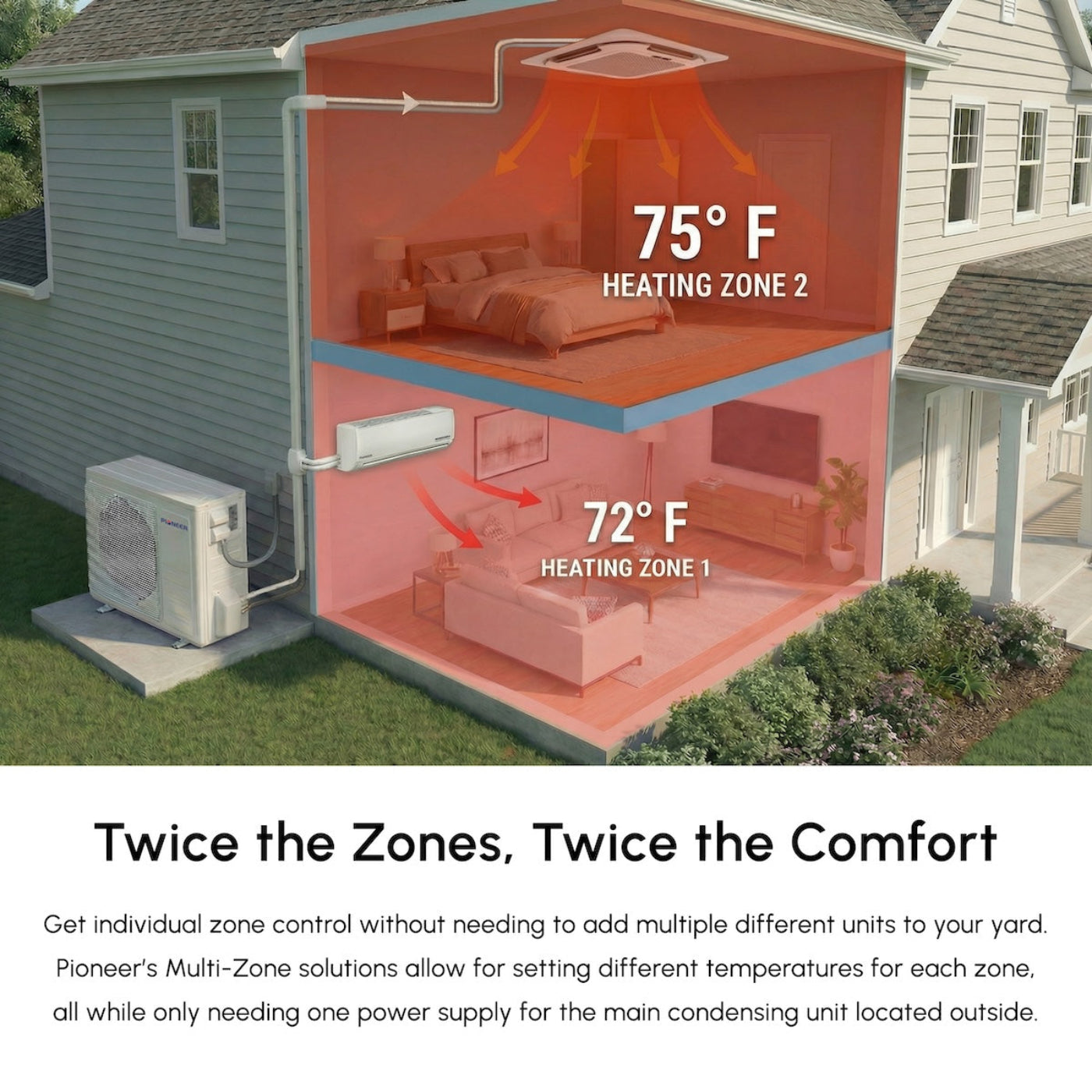

• True multi‑zone flexibility: Comes with two wall‑mount indoor units that let you individually control each zone, so one room stays cool while the other can heat or hold a different set point.

• Smart inverter heat pump tech: Variable‑speed DC inverter operation provides precise temperature modulation, smoother comfort, and quieter running compared with fixed‑speed HVAC systems — enhancing year‑round comfort.

• Built‑in Wi‑Fi control: Integrated Wi‑Fi lets you adjust settings remotely via the Pioneer Airlink app, giving modern convenience and control from anywhere.

• Cold‑climate ready: Designed to heat efficiently even in lower outdoor temperatures, ensuring dependable performance in seasonal swings.

• Complete dual‑system set: Includes outdoor unit, two indoor units, line sets, remotes, and installation hardware — streamlining professional setup and reducing extra part purchases.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a dual-zone wall-mounted mini-split air conditioner with integrated heat pump, designed for efficient climate control in two rooms.

Q2: What cooling and heating capacity does it provide?
A: Provides 18,000 BTU cooling (1.5‑ton) with heat pump heating, ideal for two connected zones.

Q3: How energy-efficient is this unit?
A: Features 24 SEER2 efficiency and Energy-Star rating, offering energy savings and precise temperature control.

Q4: How many zones can it support?
A: Supports two indoor wall-mounted units, each with independent temperature control.

Q5: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home integration.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control provides quiet operation, precise temperature regulation, and energy-efficient performance.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, ensuring year-round comfort.

Q9: What indoor unit style is included?
A: Features high-wall mounted units for each zone with optimized airflow and quiet operation.

Q10: What spaces is this system best suited for?
A: Ideal for apartments, dual-bedroom setups, offices, or small multi-zone residential spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality in both zones.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat exchange and inverter performance.

• Inspect condensate drain lines and pans regularly to prevent leaks or water buildup in each zone.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for balanced airflow and consistent temperature control.

• Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and full system optimization.
