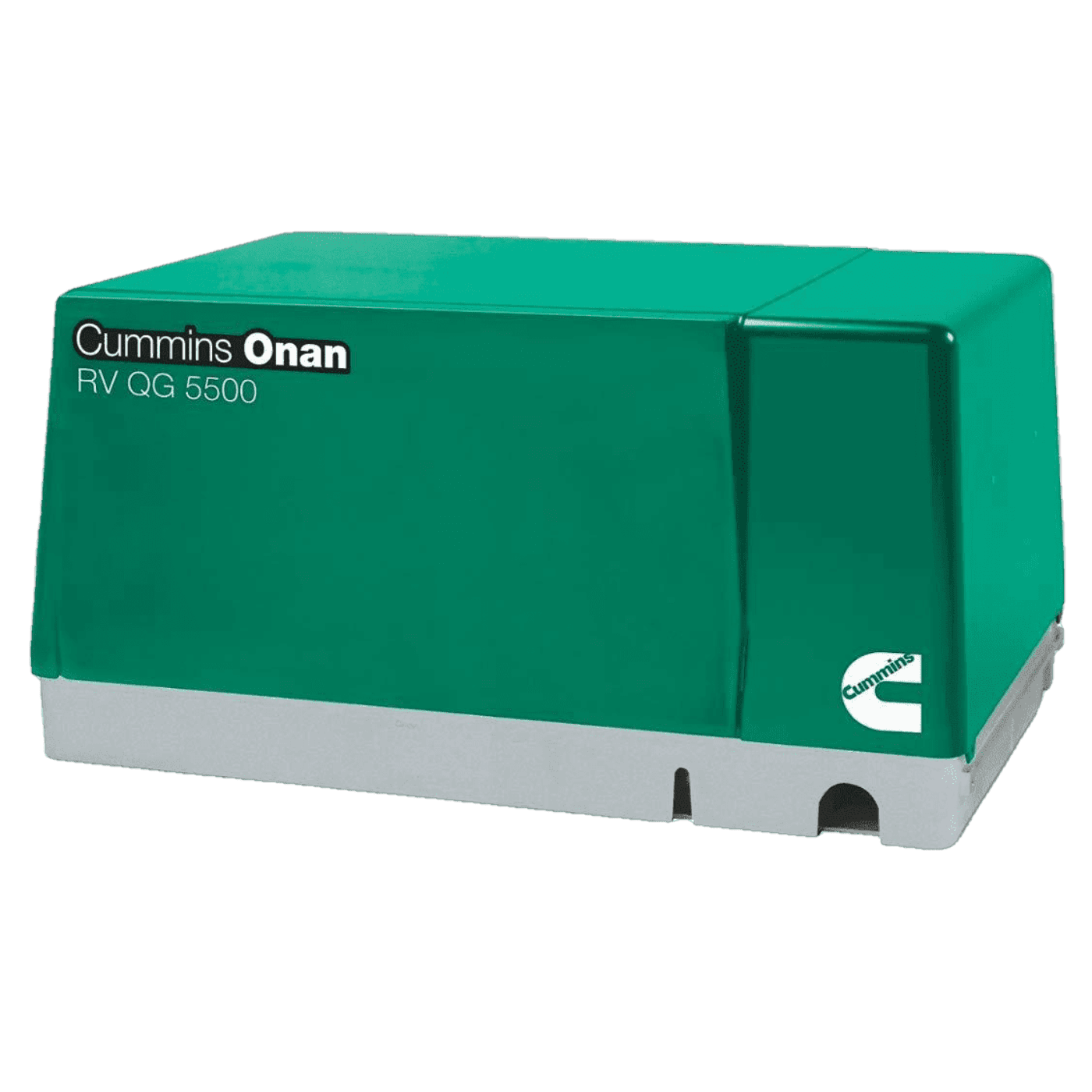

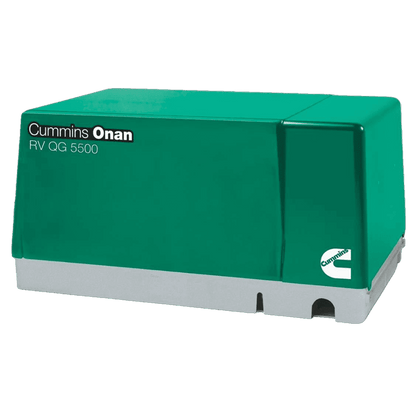

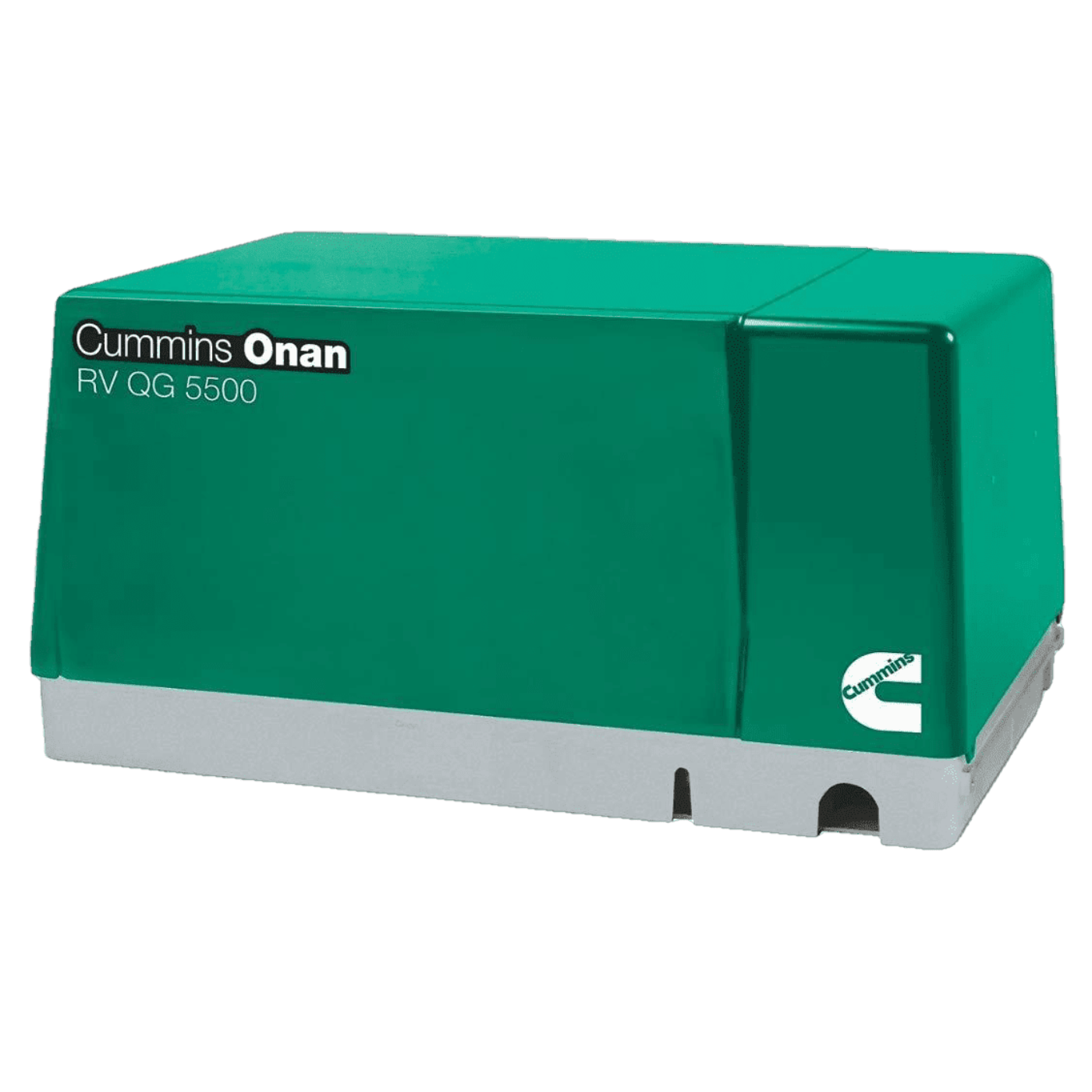

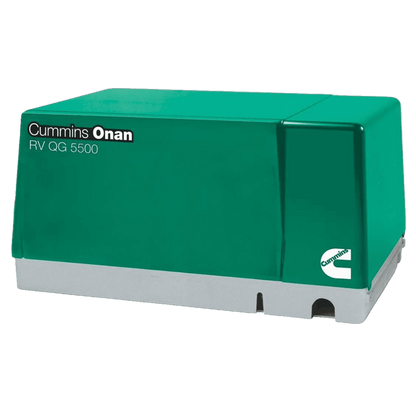

Cummins Onan QG 5500 5.5HGJAB-1119 LP 5500W 120V Propane RV Generator New
The Cummins Onan RV QG 5500 LP 5.5HGJAB-1119 meets CARB and EPA Tier 4 Final and Phase IV standards and specifications required for all motorized recreational vehicle generator sets. For sale in all 50 states. For Class A, Class B, and Class C RV Motorhomes, motorized vehicles and light commercial vehicle applications, the Cummins Onan 5500 LP Generator 5.5HGJAB-1119 starts and runs two 15,000 BTU air conditioners with a 1000-watt baseload of lights and appliances.
Features
- Mechanical governor adjustable from service side
- Cummins Onan OHV engine
- Pressurized Thru Flow cooling system
- 4-point focalized mounting system with vibration
- Universal mounting tray with structural capability to support the generator set in RV applications
- Integral USDA Forest Service-approved spark-arrestor muffler
- Replaceable dry element air cleaner
- Integral control box
- Instant one-touch stop switch
- Automatic choke
- Fuel filter
- Electric fuel pump
- Positive fuel shutoff (3 psi)
- Enclosed muffler
- Sound-attenuated housing
- Remote waterproof connector
- Automotive type starter with automatic start
- Low oil pressure protection
- Over/under speed protection
- Low power factor field overcurrent protection
Specification
| Manufacturer's Warranty |
3 Yr Consumer Limited |
| Rated Watts |
5,500 |
| Phase |
Single |
| Amps |
45.8 |
| Hertz |
60 |
| Start Type |
Remote, 12 V, 3-wire, negative groundautomotive type starter with steel pinion and ring gear, automatic start disconnect, connector for remote start cable, start-stop rocker switch mounted on set control |
| Engine |
Cummins Onan 4-cycle OHV V-Twin |
| Decibel Level @ 10 ft. |
69 |
| Fuel Consumption |
1.1 gal/hr (full load) .8 gal/hr (half load) |
| Fuel Type |
Liquid Propane |
