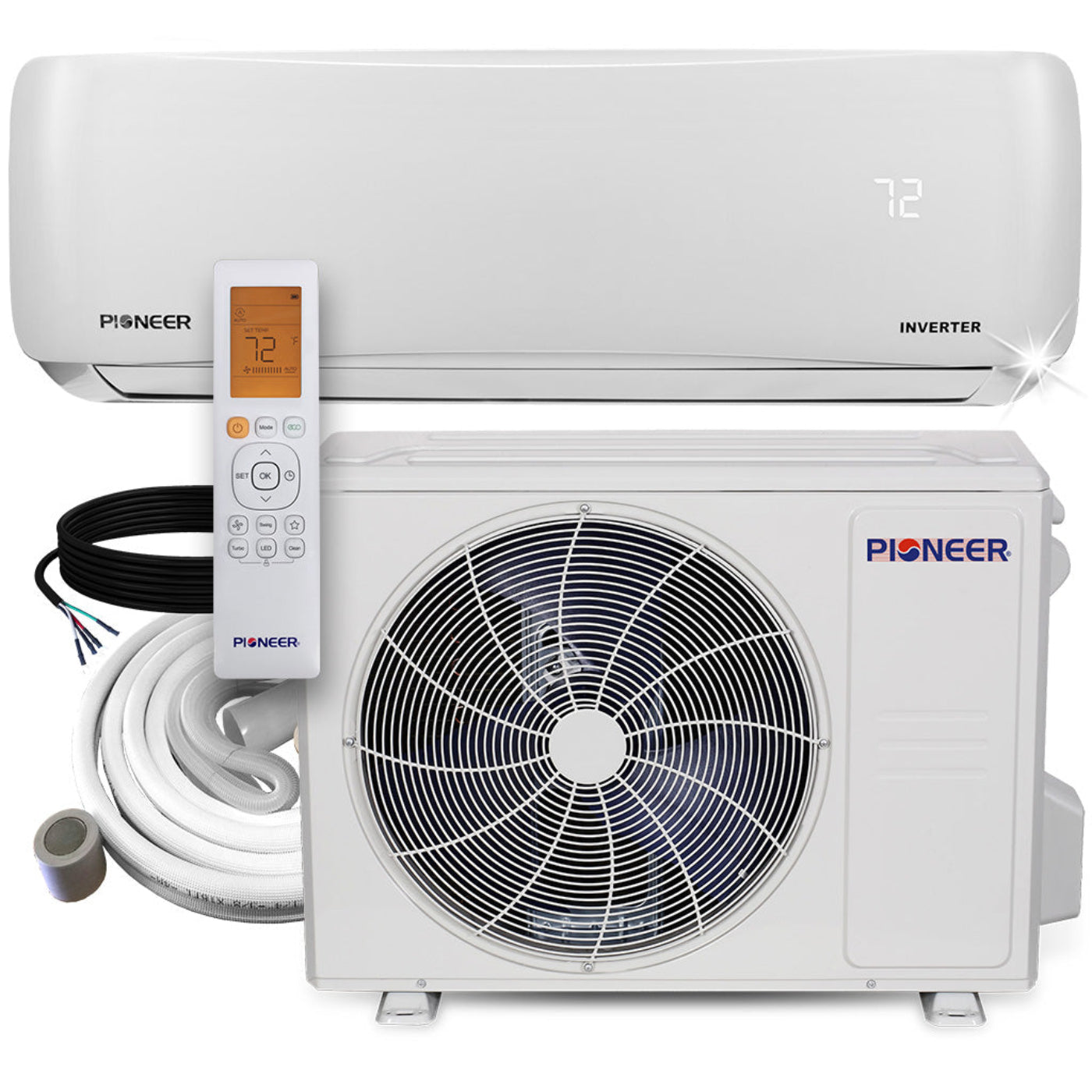

Pioneer 24,000 BTU 18 SEER2 Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - WYS024GMFI20RL-10

Pioneer 24,000 BTU 18 SEER2 Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - WYS024GMFI20RL-10

• High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
• Cooling capacity: 24,000 BTU/H with 18 SEER2 / 9 EER2 efficiency
• Heating capacity: 24,000 BTU/H with 8.6 HSPF2 / 3.03 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

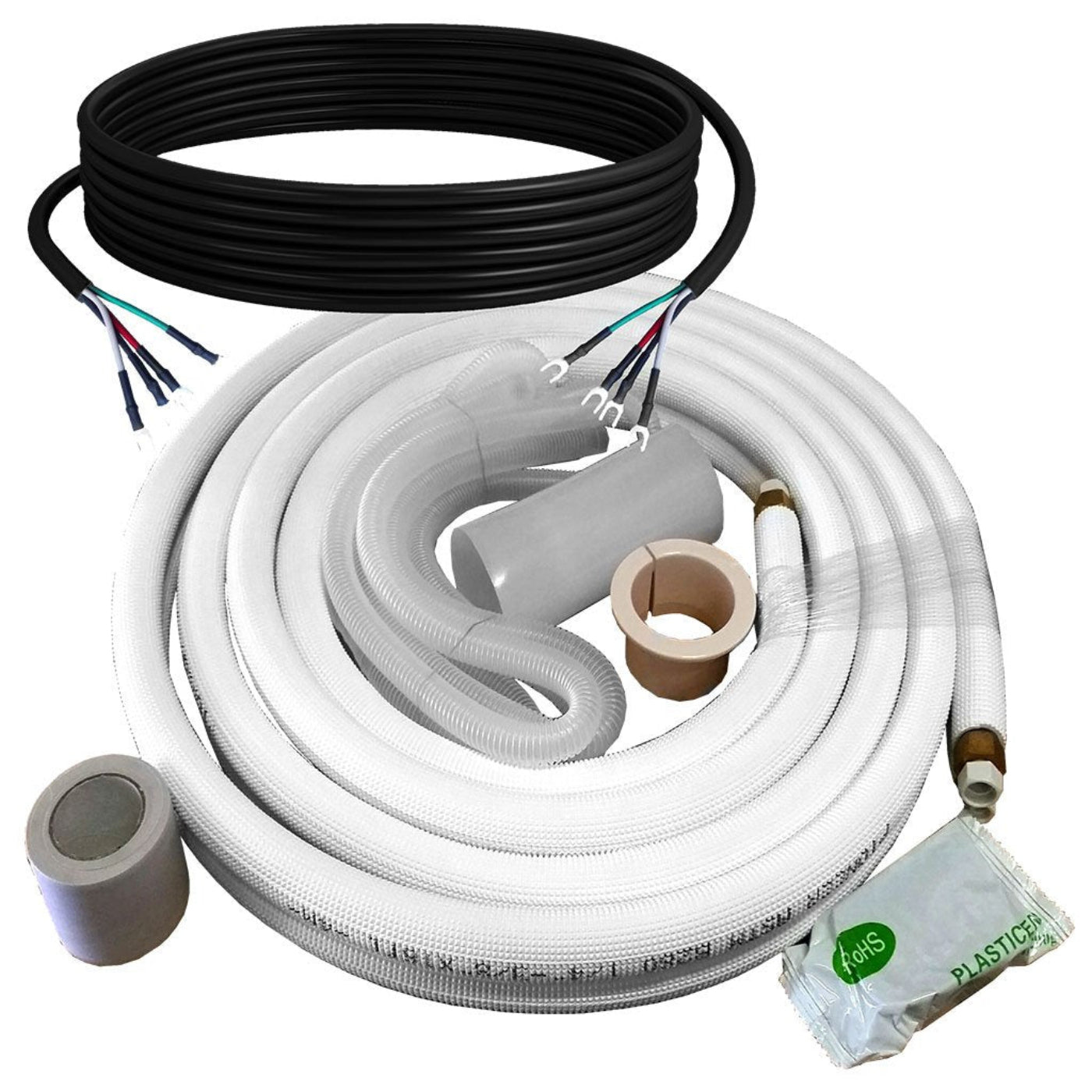

• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $176.00
• Heating: $518.00

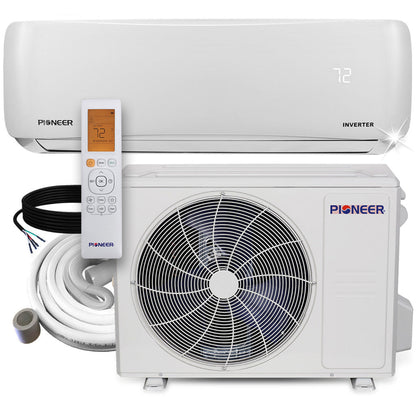

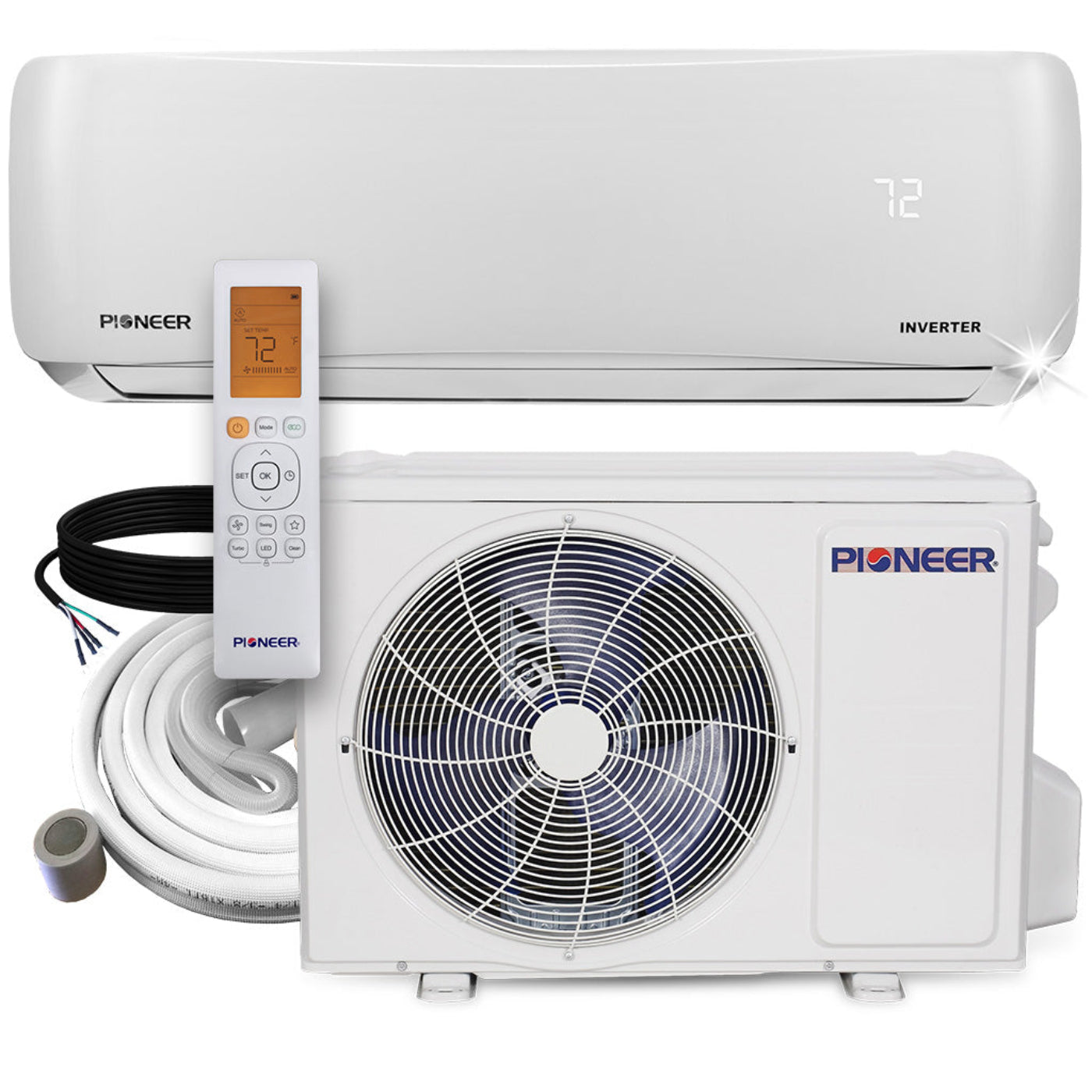

Included

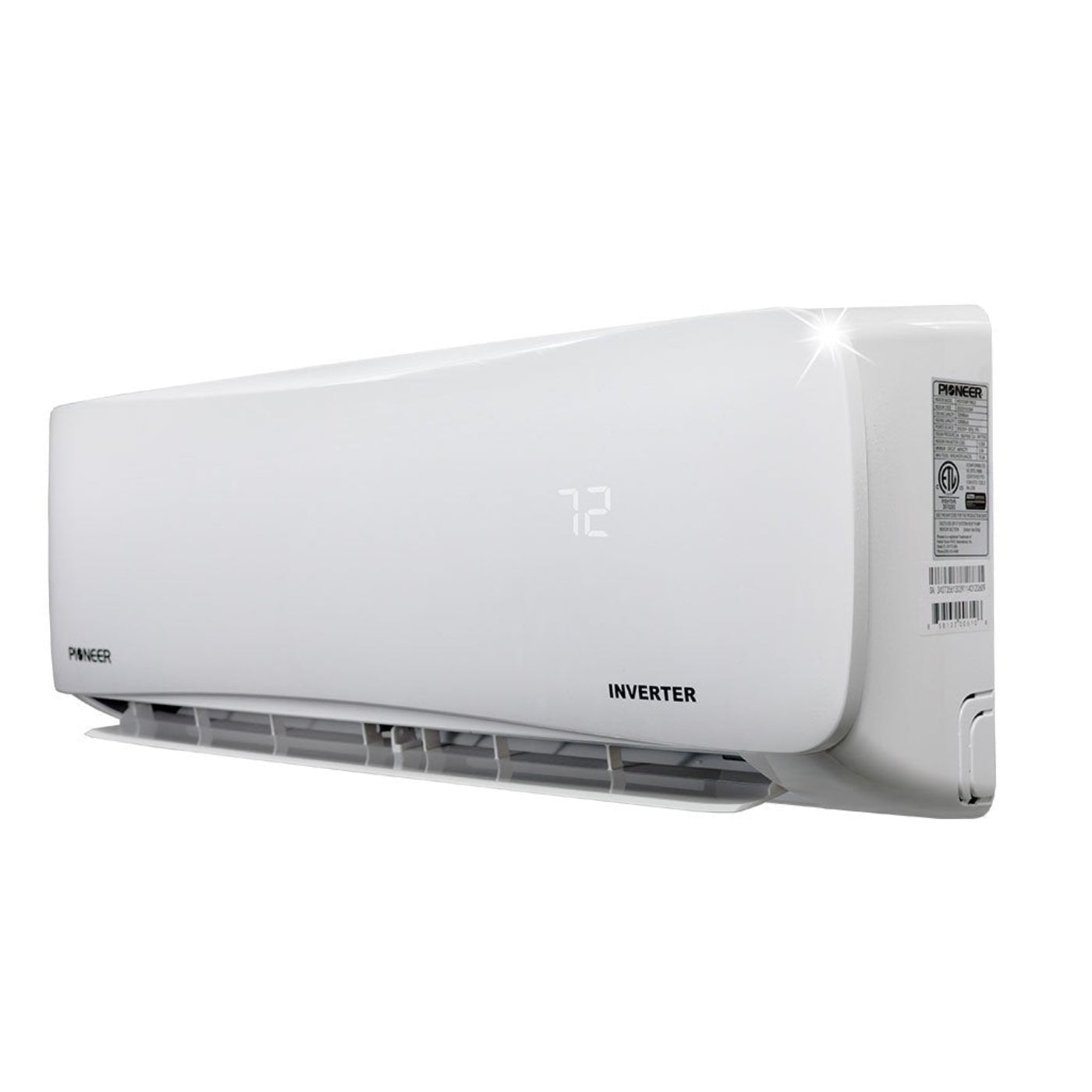

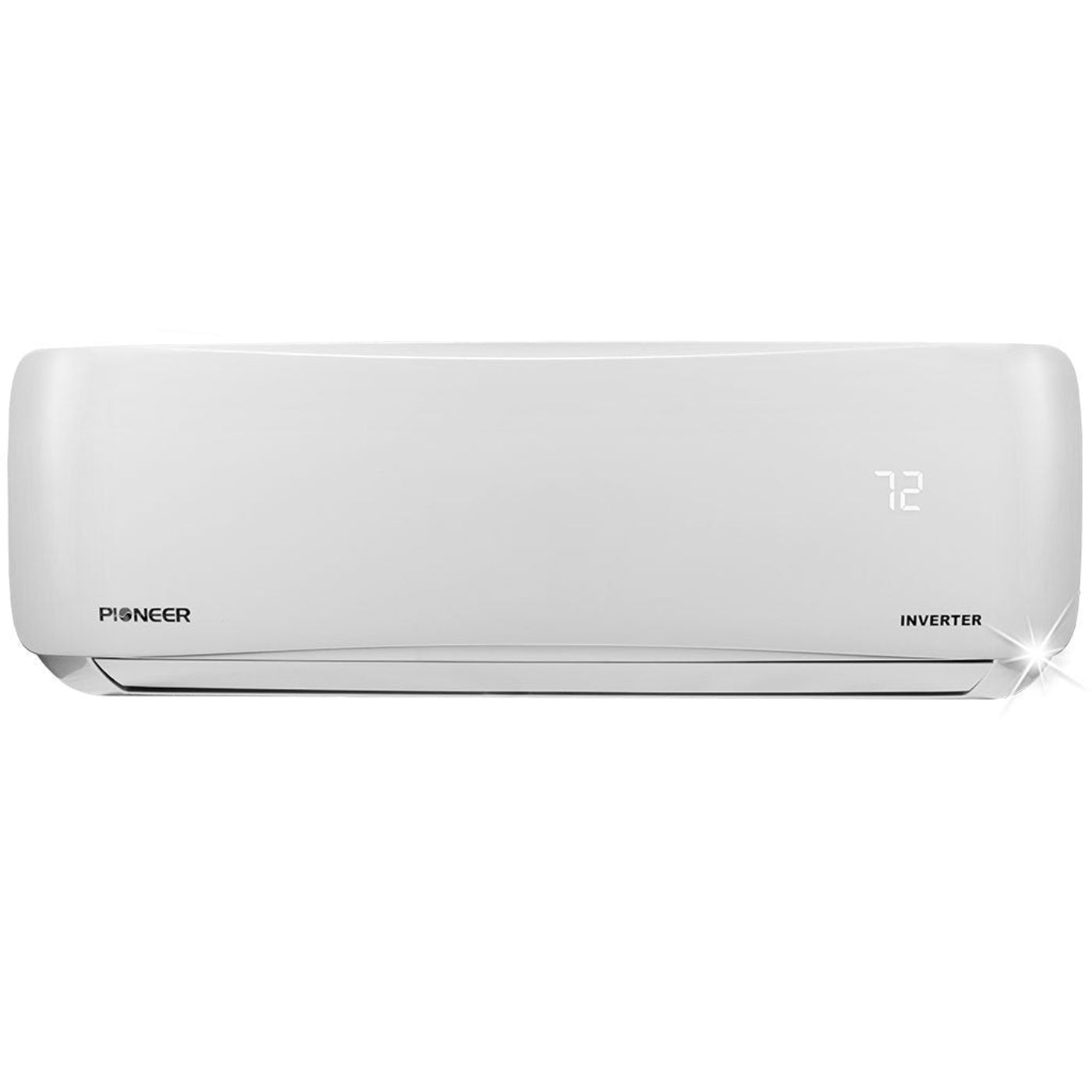

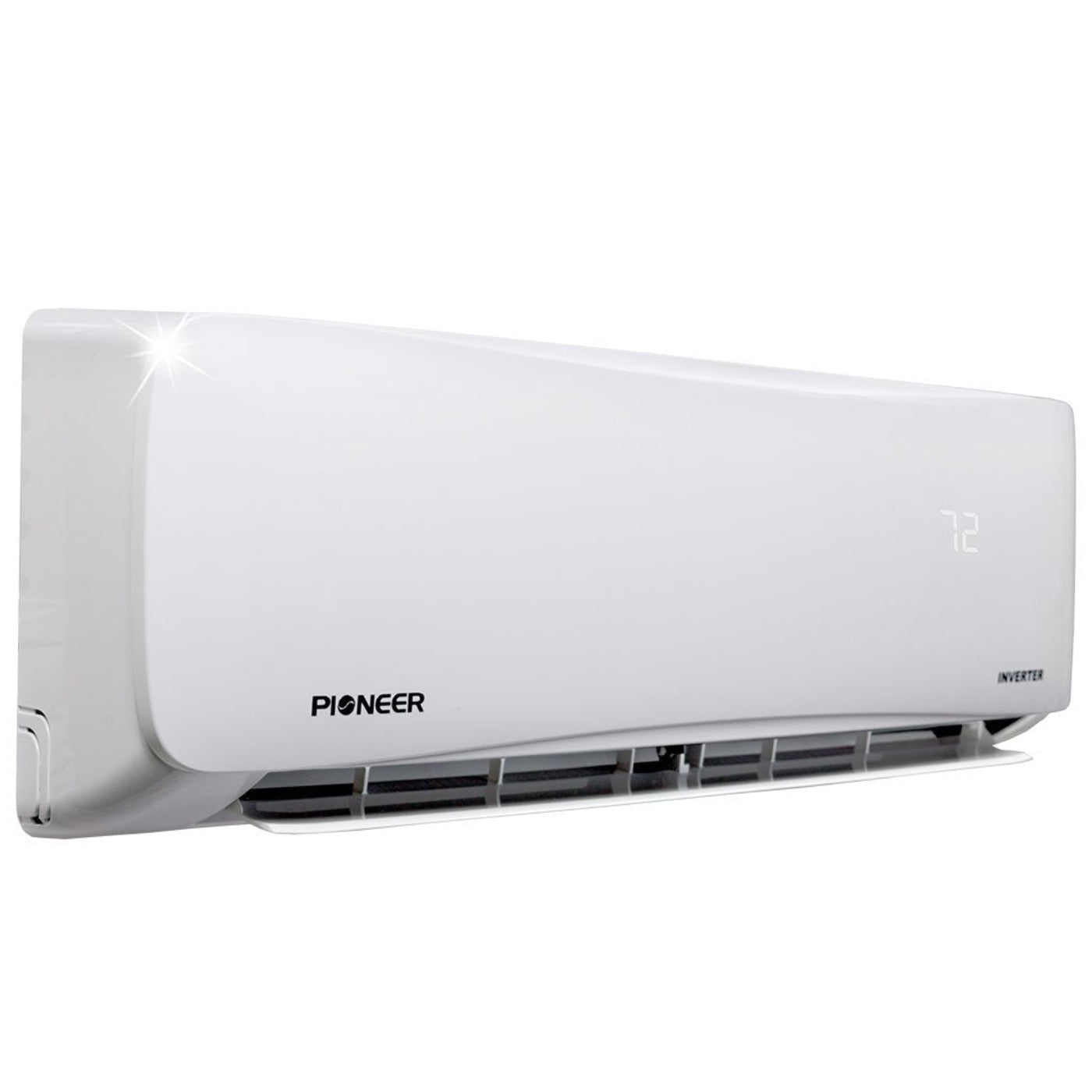

• Indoor Unit

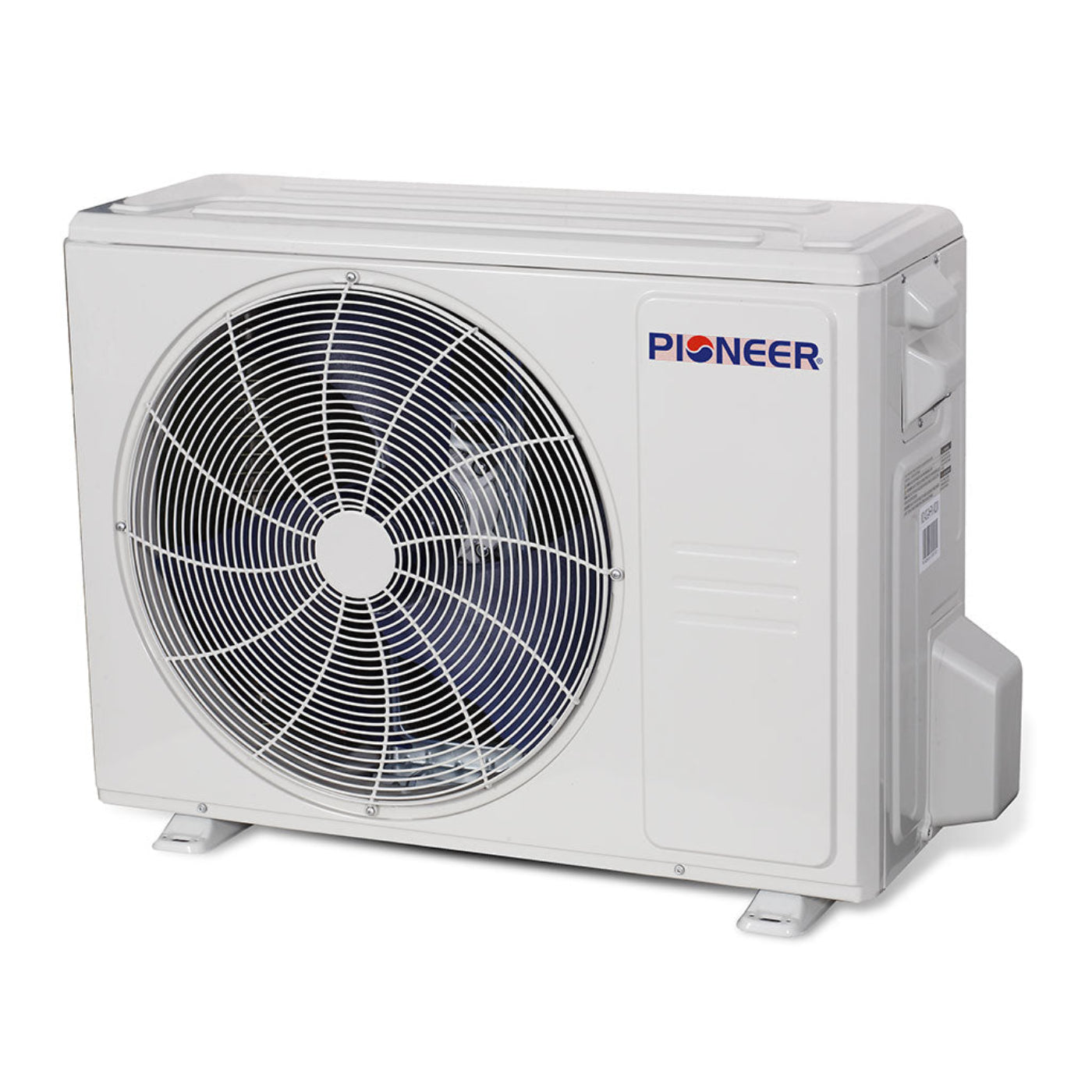

• Outdoor Unit

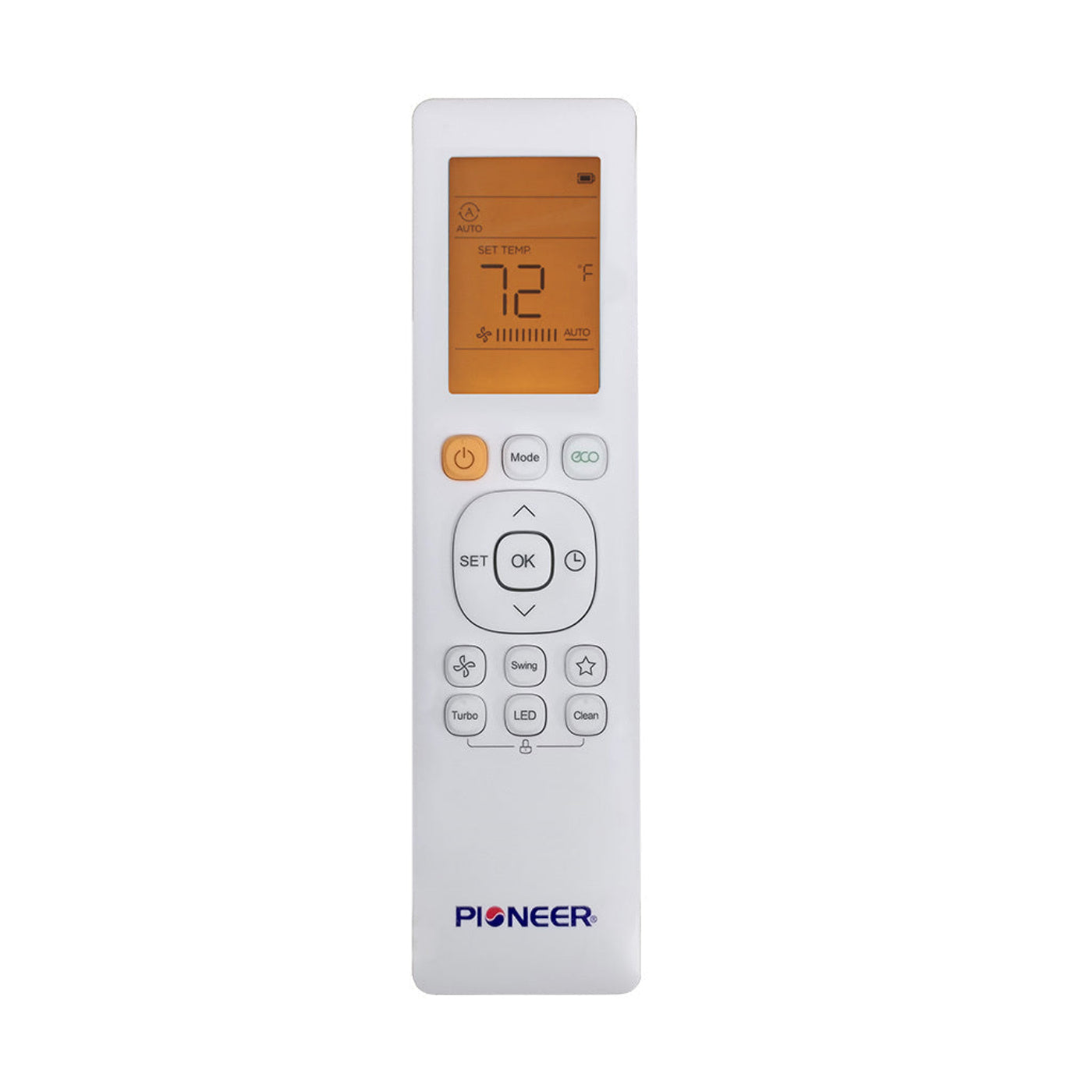

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


What our Experts Think

• Balanced year‑round comfort: The Pioneer 24,000 BTU 18 SEER2 Ductless Mini‑Split Inverter+ Air Conditioner Heat Pump System (WYS024GMFI20RL‑10) offers strong cooling and heating performance with 18 SEER2 efficiency, making it ideal for medium‑large spaces (~650–900 sq ft) while keeping energy use reasonable.

• Smooth inverter heat pump design: Variable‑speed DC inverter technology provides precise temperature control, reduced cycling, quieter operation, and improved part‑load efficiency compared with fixed‑speed units — enhancing comfort and lowering operating costs.

• Complete full set solution: Includes indoor and outdoor units, wireless remote control, and support for customizable line set lengths, reducing the need for extra component purchases and simplifying professional installation.

• Reliable all‑season performance: With balanced 24,000 BTU cooling and heating capacity, this heat pump system ensures comfortable temperatures in both summer and winter conditions, with efficient output across a broad range of loads.

• User‑friendly indoor comfort: The indoor unit delivers multi‑speed airflow (up to ~588 CFM) with low sound levels (as quiet as ~35 dB), helping maintain a peaceful interior environment.

• Strong heating range: Rated heating performance and HSPF2 efficiency (~8.6) support effective warmth in cooler months, extending the system’s usefulness beyond just cooling.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ductless mini-split air conditioner with integrated Inverter+ heat pump, designed for single-zone or multi-zone applications.

Q2: What cooling and heating capacity does it provide?
A: Provides 24,000 BTU cooling with heat pump heating, ideal for medium-sized rooms or open-concept spaces.

Q3: How energy-efficient is this unit?
A: Features 18 SEER2 efficiency and Inverter+ technology for precise temperature control and reduced energy consumption.

Q4: Does it include installation accessories?
A: Yes, this full set includes indoor unit, outdoor condenser, line set, and installation kit for complete setup.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential circuits.

Q6: How does inverter+ technology improve performance?
A: Variable-speed inverter+ control ensures quiet operation, consistent temperature, and energy savings.

Q7: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.

Q8: What indoor unit style is included?
A: Features a high-wall mounted air handler for optimized airflow and quiet operation.

Q9: Is this system suitable for multi-zone setups?
A: Yes, it can integrate into multi-zone configurations with compatible Pioneer mini-split indoor units.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, offices, bedrooms, or medium residential spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris for optimal heat transfer and inverter performance.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for proper airflow and consistent comfort.

• Schedule professional service yearly for inverter diagnostics, refrigerant checks, and full system optimization.
