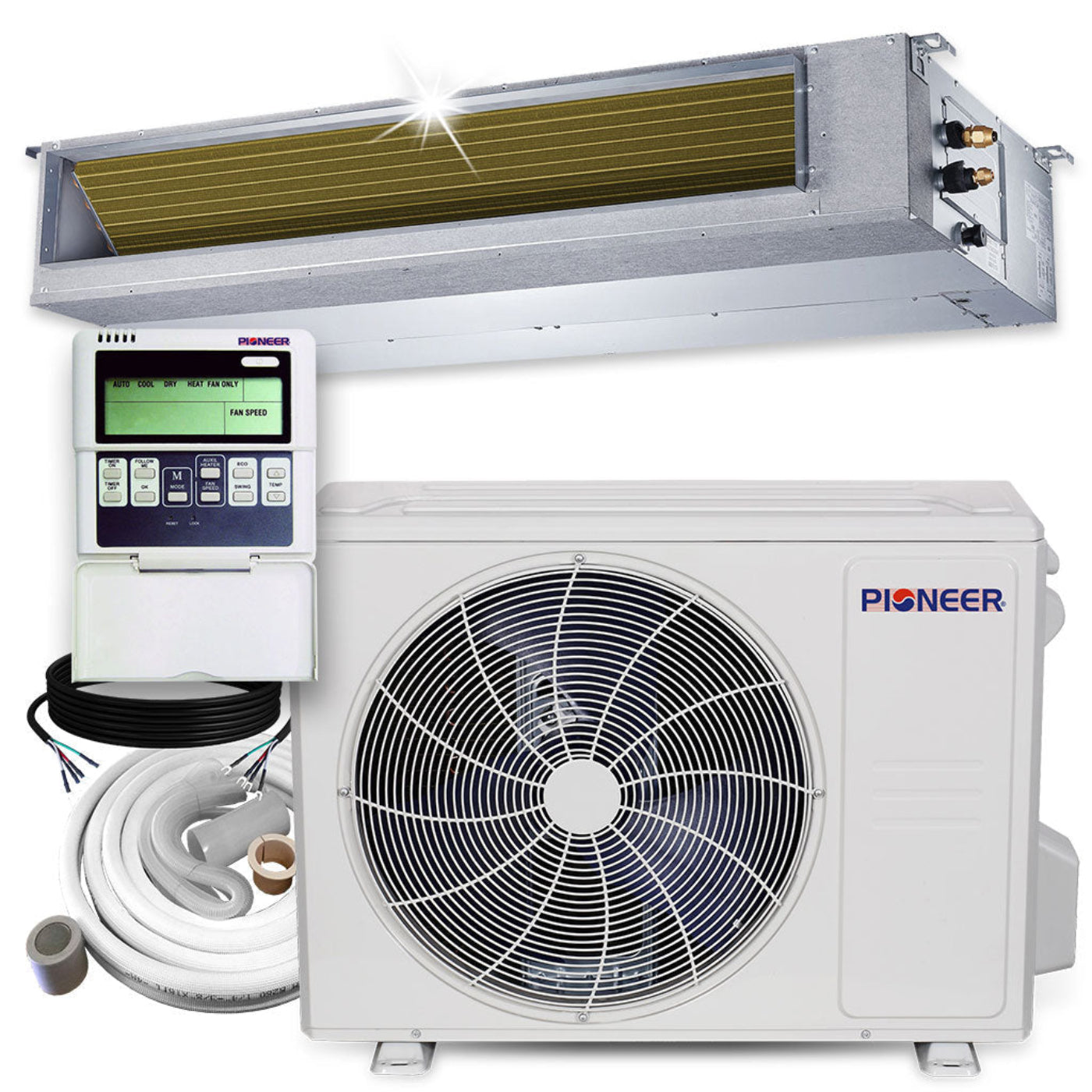

Pioneer 18,000 BTU 20 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V - RYB018GMFILDAD-10

Pioneer 18,000 BTU 20 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V - RYB018GMFILDAD-10

• Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
• Cooling capacity: 17,000 BTU/H with 20.0 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 20,000 BTU/H with 10.6 HSPF2 / 3.12 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $119.00
• Heating: $346.00

Included

• Indoor Unit
• Outdoor Unit
• Wire Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


Manuals

• Series Technical Brochure
• Series User Manual
• Series Technical Manual
• Series Installation Manual

• Series Service Manual
• Series Disassembly Guide
• RYB018GMFILDAD Submittal Sheet
• AHRI Certificate
• Energy Guide

What our Experts Think

• Energy‑Star efficiency for year‑round comfort: With 18,000 BTU capacity and 20 SEER2 inverter++ performance, this ceiling‑concealed, ducted system delivers efficient cooling and heating while helping reduce operating costs — ideal for medium to large spaces (~500–800 sq ft).

• Discreet, professional‑grade installation: Designed for ceiling‑concealed ducted applications, it integrates seamlessly into existing ductwork, providing even airflow distribution and preserving interior aesthetics.

• Smooth inverter heat pump performance: Advanced DC inverter++ technology offers precise temperature modulation, reduced cycling, and quieter operation than fixed‑speed HVAC systems — meaning more consistent comfort and longer equipment life.

• Energy‑Star certified savings: ENERGY‑STAR alignment ensures improved efficiency and lower electricity use compared to non‑certified systems — a strong plus for energy‑conscious homeowners.

• Balanced cooling & heating: With dependable cooling and heat pump heating, this system comfortably handles seasonal extremes, making it a true all‑season solution.

• Installation‑ready full set: Includes indoor/ceiling unit, outdoor unit, controls, and wiring — helping simplify professional installation and reduce extra part purchases.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ceiling concealed ducted mini-split air conditioner with integrated Inverter++ heat pump, ideal for hidden installations and efficient climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 18,000 BTU cooling with heat pump heating, suitable for medium-sized rooms or multi-zone applications.

Q3: How energy-efficient is this unit?
A: Features 20 SEER2 efficiency, Energy-Star rating, and Inverter++ technology for precise temperature control and lower energy consumption.

Q4: What installation style does it support?
A: Designed for ceiling concealed ducted installation, delivering air discreetly through hidden ducts.

Q5: Does it include installation accessories?
A: Yes, this full set includes indoor unit, outdoor condenser, line set, and installation kit for complete setup.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.

Q7: How does inverter++ technology improve performance?
A: Variable-speed inverter++ control ensures quiet operation, consistent comfort, and energy efficiency.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.

Q9: Is this system suitable for multi-zone setups?
A: Yes, it can integrate into Quantum Ultra or compatible multi-zone configurations with the appropriate outdoor units.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, offices, conference rooms, or medium commercial spaces requiring discreet ceiling installation.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat transfer and inverter performance.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for proper airflow and consistent comfort.

• Schedule annual professional servicing for inverter diagnostics, refrigerant checks, and system optimization.
