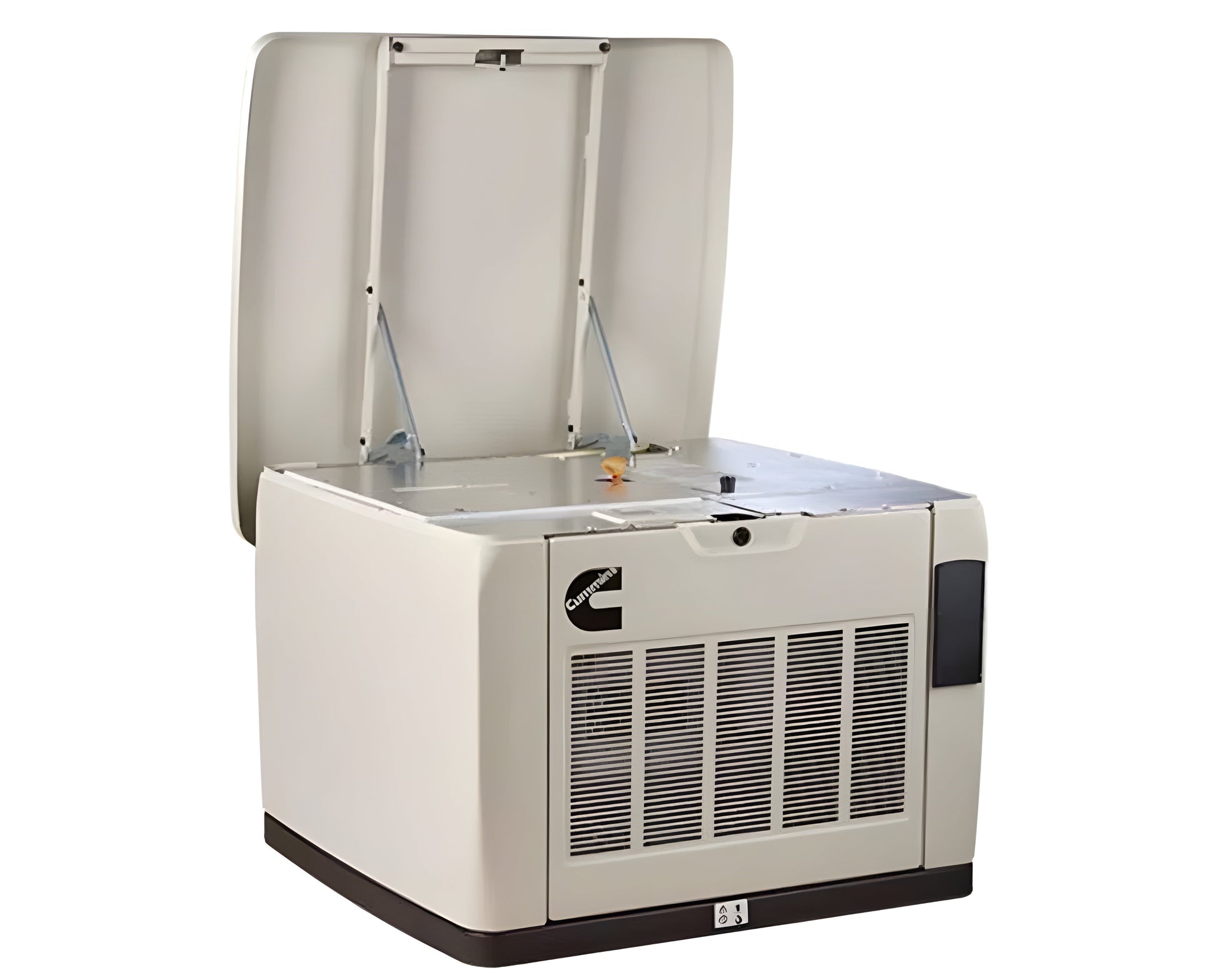

Cummins RS13A - 13kW Quiet Connect™ Series Home Standby Generator
The Cummins Quiet Connect Series 13-18kW Air-Cooled Standby Generator is the perfect power backup during an outage. It is powered by a 999 cc engine which runs from 13 to 20 kilowatts both on natural or propane gas. The engine has a total harmonic distortion of 5% and has the ability to start and run a 5-ton A/C under full preload. It features an air-cooled cooling system with extremely quiet operation at a 65-decibel rating. This generator has the "Crank-Only" mode which reduces wear and tear while saving fuel and reducing noise. This can operate in cold weather out of the box.
Features
- Weather Protective Aluminum/Steel Sound Enclosure
- Can be installed* within 18" of a build (NFPA 37) - Always check local building codes
- Sound dampening engineering limits noise level to a low 65dB(A) @ 7M
- 999cc Cummins Air-Cooled V-Twin OHV Engine
- Field-selectable, runs on ultra efficient natural gas or LP (vapor)
- Low oil pressure shutdown provides added safety and longevity
- Operates in cold weather with performance down to 0 °F
- < 5% THD (Total Harmonic Distortion)
- Clean power that won't damage your electronic devices
- Patented "Crank Only" Exercise Mode
- Provides diagnostics without running engine for less wear and lower fuel costs
- Allows user to select time, date and frequency of exercise
- Load Management Capability (Requires Load Management Kit - Sold Separately)
- Maximizes generator power by intelligently managing up to 4 electrical loads
Specifications
| Manufacturer's Warranty |
5 Yr Consumer Limited |
| Rated Watts |
13,000 |
| Phase |
Single (120/240v) |
| Start Type |
Automatic w/ transfer switch (not included) |
| Engine |
Cummins Onan |
| Engine Displacement |
999cc |
| Decibel Level @ 7m |
65db |
| Fuel Consumption (NG) |
253 cu.ft/hr (full load) 195 cu.ft/hr (half load) |
| Fuel Consumption (LP) |
2.3 gal/hr (full load) 1.6 gal/hr (half load) |
| Fuel Type |
Liquid Propane or Natural Gas |
Manuals
User's Manual
Spec Sheet
